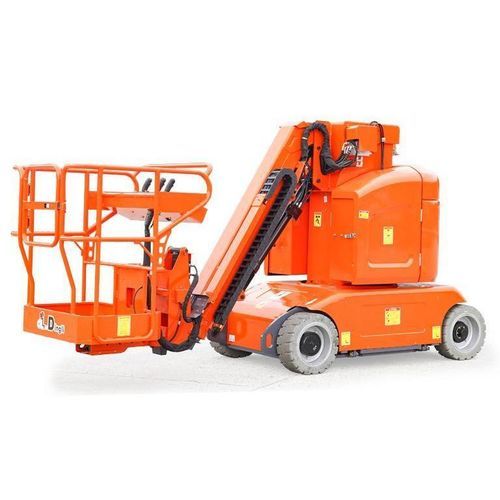

Self-propelled aerial platform AMWP13-9200

electric4 wheel drive

Product
AMWP13-9200 is a self-propelled vertical lift designed for indoor maintenance and installation tasks requiring a compact footprint and vertical reach.

Dimensions

• Max. Working Height: 12.40 m / 40 ft 8 in
• Max. Platform Height: 10.40 m / 34 ft 1 in
• Max. Horizontal Reach: 5.50 m / 18 ft 1 in
• Platform Size (L×W): 0.69 m × 0.93 m / 2 ft 3 in × 3 ft 1 in
• Overall Length: 3.82 m
• Overall Width: 1.20 m
• Overall Height (stowed): 1.99 m
• Ground Clearance (Stowed/Raised): 0.10 m / 4 in ; 0.015 m / 1 in
• Wheelbase: 1.60 m
• Turning Radius (Inside/Outside): 0.70 m / 2.50 m
• Tyres: φ470 × 178 mm

Performance

• Safe Working Load (SWL): 200 kg / 441 lb
• Max. Occupants (Indoor/Outdoor): 2 / 1
• Gradeability: 0.25
• Max. Working Slope (X/Y): 2.5 / 2.5
• Turret Rotation: 345°
• Jib Movement: 60° ~ -60°
• Travel Speed (Stowed/Raised): ≯4.5 km/h / ≯0.5 km/h
• Travel Speed (Stowed): ≯4.5 km/h / ≯2.8 mph
• Travel Speed (Raised): ≯0.5 km/h / ≯0.3 mph
• Up/Down Speed: 42 / 37 sec

Weight

• Overall Weight: 4920 kg / 10847 lb

Power

• Battery: Lead-acid maintenance-free 48 V / 200 Ah
• Charger: 48 V / 35 A
• Driving Motor: 2 × 32 VAC / 2.0 kW
• Lifting Motor: 30 VAC / 5.0 kW

Downloads (titles)

• AMWP13-9200
• Vertical Mast Lifts

Technical specifications

• Model: AMWP13-9200
• Product Type: Self-propelled Vertical Lifts
• Max. Working Height: 12.40 m / 40 ft 8 in
• Max. Platform Height: 10.40 m / 34 ft 1 in
• Max. Horizontal Reach: 5.50 m / 18 ft 1 in
• Max. Up And Over Clearance: 7.00 m / 23 ft
• Overall Length: 3.82 m / 12 ft 6 in
• Overall Width: 1.20 m / 3 ft 11 in
• Overall Height: 1.99 m / 6 ft 6 in
• Platform Size: 0.69 m × 0.93 m / 2 ft 3 in × 3 ft 1 in
• Ground Clearance (Stowed/Raised): 0.10 m / 4 in ; 0.015 m / 1 in
• Wheelbase: 1.60 m / 5 ft 3 in
• Turning Radius (Inside/Outside): 0.70 m / 2.50 m
• Tyres: φ470 × 178 mm
• Safe Working Load: 200 kg / 441 lb
• Max. Occupants (Indoor/Outdoor): 2 / 1
• Gradeability: 0.25
• Max. Working Slope (X/Y): 2.5 / 2.5
• Turret Rotation: 345°
• Jib Movement: 60° ~ -60°
• Travel Speed (Stowed/Raised): ≯4.5 km/h / ≯0.5 km/h
• Up/Down Speed: 42 / 37 sec
• Overall Weight: 4920 kg / 10847 lb
• Battery / Charger: 48 V / 200 Ah ; Charger 48 V / 35 A
• Driving Motor: 2 × 32 VAC / 2.0 kW
• Lifting Motor: 30 VAC / 5.0 kW
