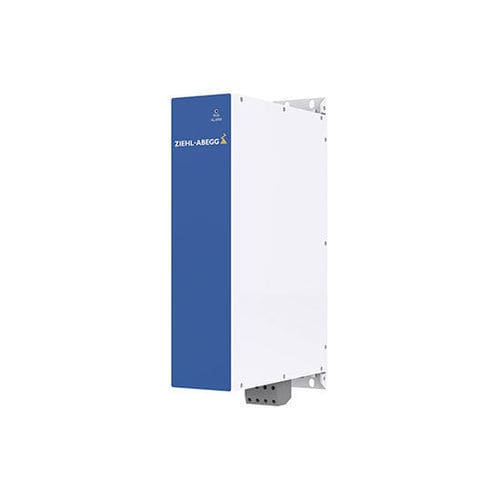

Filter Z-D-15E-060

Overview
The Z-D series active harmonic filter provides automatic harmonic compensation, power factor correction and mains unbalance compensation for industrial power systems. Specially developed algorithms operate in an Auto mode that minimizes the need for manual tuning, ensuring stable operation with critical power supplies. SiC-based power electronics improve efficiency and reduce heat dissipation while the compact design saves space in control cabinets.

Features

• Auto mode with proprietary algorithms for automatic harmonic compensation
• Functions: harmonic compensation, power factor correction, mains unbalance compensation
• Designed to support critical power supplies without complex individual configuration
• SiC power electronics for higher efficiency and lower thermal dissipation
• Compact enclosure optimised for control cabinet installation
• Available rated filter currents: 15 A, 35 A, 55 A

Applications
Suitable for installations with high requirements for reliability and voltage quality such as hospitals, data centres and airports. The filters reduce harmonics generated by non-linear loads and improve supply quality for LED lighting, IT and telecom equipment, frequency inverters, pumps, compressors, UPS systems, EV charging stations and solar inverters.

Models (examples shown on page)

• Z-D-15E-060 — Article no.: 349114
• Z-D-35E-100 — Article no.: 349117
• Z-D-55E-200 — Article no.: 349120

Technical specifications

• Rated filter current options: 15 A, 35 A, 55 A
• Functions: harmonic compensation, power factor correction, mains unbalance compensation
• Operation: automatic algorithms (Auto mode) — no complex initial tuning required
• Power electronics: SiC technology for improved efficiency and reduced heat dissipation
• Installation: compact design for control cabinet mounting
