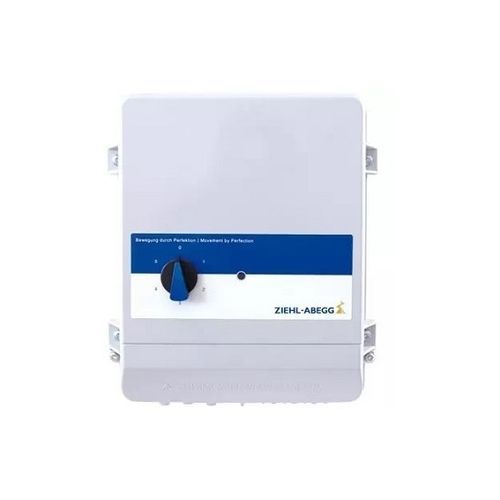

Speed fan controller RUE-2G

Overview
Transformer-based speed controllers for ZIEHL-ABEGG external-rotor motors and fans. Provide simple, cost-effective stepped speed control via an integrated 5-stage transformer. Available in single-phase and three-phase versions with variants offering additional I/O and motor protection functions. Suitable for noise-sensitive applications due to control without electromagnetic excitation.

Product specification
Speed adjustment via built-in 5-stage transformer. Individual or parallel control of 3~ motors or fans. Optional external 0–10 V input on selected models for continuous control.

Properties & special features

• Designed for use with ZIEHL-ABEGG external-rotor motors and fans.
• Simple, rugged design for industrial installation.
• Stepped speed selection without electromagnetic motor noise — recommended for noise-sensitive areas.
• Some models include outputs/inputs to control dampers or valves and provide motor protection.

Version / Output range

• 1~ transformers: 1.5 – 14 A
• 3~ transformers: 2 – 14 A

Scope of functions

• Integrated 5-stage rotary switch for direct speed selection; devices with two 5-step switches allow two externally selectable speeds.
• Models with external 0–10 V input for setpoint control.
• Extended variants with additional inputs/outputs for expanded control, some capable of driving dampers or valves.
• Advanced units offer motor protection functions.

Examples of available models

• RUE-2G
• RUE-4G
• RAE-4G
• RAE-7G
• RTRD14E
• R-D-1G
• R-D-2G
• R-DT1KTG
• R-DT4KT
• R-DT5.2KTG
• R-E-1.5G
• R-E-3.5G
• R-E-7.5G
• R-E-9G
• R-E-12
• R-E-14G
• RD14

Caractéristiques / spécifications techniques

• Speed adjustment: built-in 5-stage transformer.
• Control capability: individual or parallel control of 3~ motors or fans.
• Output ranges: 1~ transformers 1.5 – 14 A; 3~ transformers 2 – 14 A.
• Control interfaces: integrated 5-stage rotary switch; optional external 0–10 V input; devices with two 5-step switches for externally switched speeds.
• Extended versions: additional inputs/outputs for expanded functionality.
• Additional functions: some variants can control dampers or valves.
• Motor protection: available in advanced device versions.
• Noise behavior: speed control without electromagnetic excitation — suitable for noise-sensitive areas.
• Recommended combination: designed for use with ZIEHL-ABEGG external-rotor motors and fans.
• Available model count on page: 39 models.
