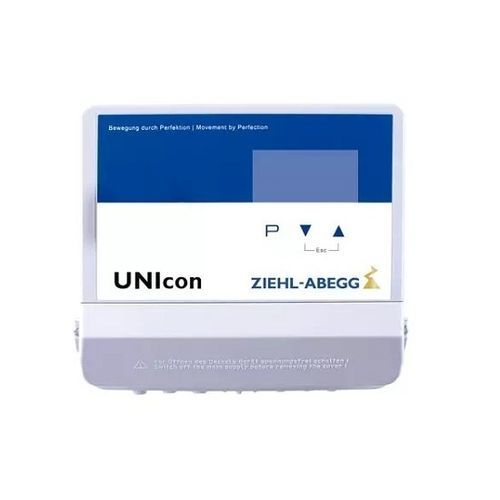

Speed fan controller UNIcon

Overview
ZIEHL-ABEGG UNIcon control modules record system values and provide control outputs to drive power units such as frequency inverters and ECblue fans. Available in multifunctional and sensor-specific variants, UNIcon units support single or multi-fan applications and typical HVAC/refrigeration use cases with selectable pre-programmed operating modes.

Product specification:
UNIcon universal and sensor control modules accept inputs from ZIEHL-ABEGG sensors, compare measured actual values with setpoints and generate control commands. Depending on the version, outputs include 0–10 V analogue signals and MODBUS communication to actuate ECblue motors, fans and frequency inverters.

Properties & special features:
Integrated MODBUS master function enables automatic addressing of connected ECblue fans or frequency inverters. Modules provide sensor input evaluation, actual vs. nominal comparison and embedded control logic. Multifunction variants include additional inputs/outputs and selectable operating modes for common applications.

Versions:

• UNIcon universal control module with integrated MODBUS master and pre-set operating modes; additional I/O on multifunction versions.
• Sensor control module for pressure control in refrigeration condensers.
• Sensor control module for differential pressure control in HVAC, extraction and ventilation systems; optional volumetric flow-based control.
• Control module for temperature regulation.
• Industry-specific versions, e.g. UNIcon configured as ventilation controller for agricultural applications.

Technical specifications:

• Series: UNIcon control modules.
• Compatibility: Designed to work with ZIEHL-ABEGG sensors and ECblue motors/fans.
• Control outputs: 0–10 V analogue and MODBUS communication (version-dependent).
• Integrated MODBUS master for automatic addressing of ECblue devices.
• Functions: sensor input evaluation, setpoint vs. actual comparison, embedded control intelligence.
• Applications: single or multi-fan control; refrigeration condensers (pressure control); HVAC/extraction differential pressure control; temperature control; agricultural ventilation.
• Pre-programmed operating modes; additional inputs/outputs on multifunction variants; optional volumetric flow control where supported.
