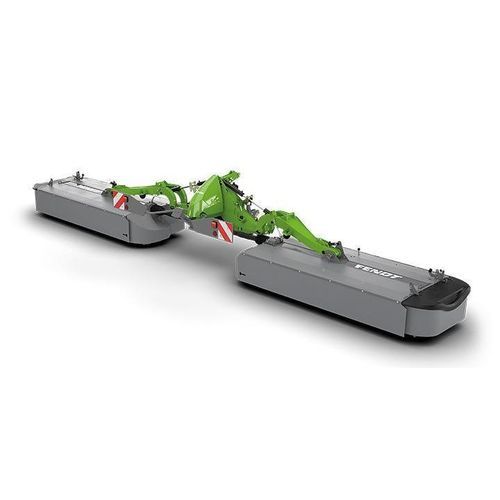

Rear-mount mower Slicer 860

disc7 discs6 discs

Overview

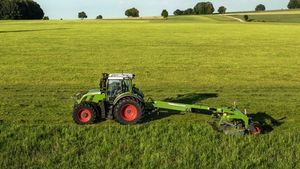

The Fendt Slicer rear mower combinations with centre suspension deliver high forage quality and large working widths under demanding conditions. Designed for contractors and farms requiring efficient, reliable harvesting in short windows, the range balances light weight, precise ground tracking and automation to save time and resources.

Might and variety
Fendt offers 16 models covering light-duty units for small farms to advanced configurations for contractors. Variants include units without conditioner, with tine (KC) or roller (RC) conditioners, PRO versions with ISOBUS automation and B models with conveyor belts for swath consolidation.

Light weight with a big punch
Slicer 860/960 combinations rank among the lightest in class and are available with or without KC/RC conditioners. The compact butterfly (two-piece) layout integrates TurboLift speed-dependent cutter bar relief and proven cutter bar technology for consistent cutting performance at varied speeds.

Key features

• Centre-suspended design with low pivot point for a low centre of gravity and safe transport.
• TurboLift hydropneumatic, speed-dependent cutter bar relief with three adjustment levels for optimal contact pressure and floating cut.
• EasySwing mechanical collision protection: deflects mower upward and rearward and automatically returns to working position.
• Excellent ground tracking: rear pendulum travel +30° / -19° and front unit oscillation ±7.5° to follow uneven terrain.
• Compact transport: mower units remain below typical legal transport height (4.00 m) despite working widths up to 9.60 m (and up to 10.10 m for some variants).
• Conditioner options: tine conditioner (KC) with four-stage ridge adjustment; roller conditioner (RC) with DUO Drive and adjustable contact pressure.
• PRO models with ISOBUS: automatic conditioner intensity (biomass sensor or application-map based), ISOBUS automation, biomass sensor options to improve forage homogeneity.
• B models with conveyor belt (BeMove): deep belt, hydraulic lateral displacement (approx. 60 cm) for adjustable swath widths and flexible crop placement.
• Section Control and TIM support on PRO models: satellite-guided sectioning, automatic lift/lower, lateral displacement and tractor steering assistance via TIM for headland and transport operations.

Model overview (tables)
Without conditioner
Model | Working width | Number of cutting discs
Slicer 860 | 8.30 / 8.60 m | 2 x 6
Slicer 960 | 9.30 / 9.60 m | 2 x 7

With conditioner
Model | Working width | Number of cutting discs
Slicer 860 KC / RC | 8.30 / 8.60 m | 2 x 6
Slicer 960 KC / RC | 9.30 / 9.60 m | 2 x 7
Slicer 1010 KC / RC | 9.80 / 10.10 m | 2 x 7

With conditioner & ISOBUS
Model | Working width | Number of cutting discs
Slicer 960 KC Pro / RC Pro | 9.30 / 9.60 m | 2 x 7
Slicer 1010 KC Pro / RC Pro | 9.80 / 10.10 m | 2 x 7

With conditioner, ISOBUS & groupers (conveyor belt)
Model | Working width | Number of cutting discs
Slicer 960 KCB Pro / RCB Pro | 9.30 / 9.60 m | 2 x 7
Slicer 1010 KCB Pro / RCB Pro | 9.80 / 10.10 m | 2 x 7

EasySwing collision protection
Selected models (860, 860 KC/RC, 960) feature mechanical collision protection that deflects the mower ≈9° rearwards and ≈400 mm upwards; the unit automatically returns to the working position.

Suspension and ground adjustment
Rear units are centre-suspended at the centre of gravity for stable trailing and precise ground tracking. A curved extension arm and compensation cylinder reduce rocking and enable the pendulum travel to compensate uneven ground.

ISOBUS PRO functions and automation

• Automatic conditioner intensity adjustment in real time using biomass sensors or TaskController application maps.
• TurboLift speed-dependent regulation for consistent contact pressure across working speeds.
• Automatic front unit side shift control on slopes and curves to avoid striping and ensure even overlap.
• Section Control for satellite-assisted partial-width management, automatic raising/lowering and edge overlap avoidance.
• TIM (Tractor Implement Management) enables tractor steering/actuation by the rear mower during headland and transport transitions.

Conveyor belt / BeMove (B models)
B models include deep conveyor belts with hydraulic lateral displacement (BeMove, up to 60 cm), infinitely variable belt speed, swath consolidation and flexible placement to suit high-throughput or dense crops.

Conditioners

• Tine conditioner (KC): four-stage ridge adjustment for controlled wilting.
• Roller conditioner (RC) with DUO Drive: gentle, effective treatment for bulkier or wetter stands; adjustable contact pressure and spring-loaded protection against foreign objects.

Benefits summarized

• High forage quality through clean cutting and effective conditioning.
• Efficient operation with low PTO speed capability (examples: possible 850 rpm operation).
• Flexible model range from small farms to large contractors with multiple widths and options.
• Reduced operator workload and faster setup via ISOBUS automation and PRO functions.

Technical specifications

• Working widths (examples): 8.30 / 8.60 m; 9.30 / 9.60 m; 9.80 / 10.10 m.
• Number of cutting discs: 2 x 6 (860 variants), 2 x 7 (960 / 1010 variants).
• Pendulum travel (rear units): +30° / -19°.
• Front unit oscillation: approx. ±7.5°.
• Transport height: units kept below 4.00 m for typical configurations up to 9.60 m.
• Swath widths with BeMove: approx. 1.80 m – 2.80 m (adjustable via belt and side shift).
• BeMove lateral displacement: up to 60 cm.
• TurboLift: speed-dependent hydropneumatic relief, adjustable on three levels.
