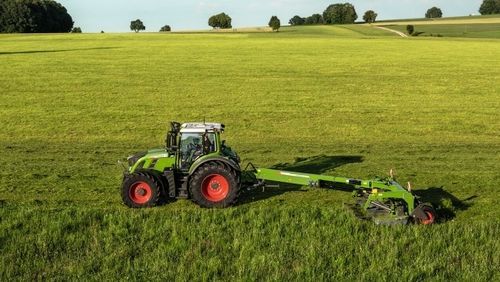

Towed mower Slicer 313 TKC

disc6 discswith roller conditioner

Overview
The Fendt disc mowers with transport chassis are designed for high performance and maximum flexibility. They are available with a tine conditioner or a roller conditioner. The centre-pivot drawbar allows mowing to the right, to the left or directly behind the tractor. The robust pivoting gearbox reduces the angle of the crosspiece joints, ensuring excellent manoeuvrability, consistent power transmission and low wear. The compact angle drive in the cutter bar produces an exceptionally clean cut by driving each mower disc separately with the same force.

Model overview (table)
Working width | Number of cutting discs
Slicer 313 TKC — 3.00 m — 6
Slicer 313 TRC — 3.00 m — 6

The right gap
The TKC and TRC cutter bar is supported at the outer points of the sturdy support frame. Parallelogram suspension adapts the mower to uneven ground: the springs shorten only slightly during pendulum movements, enabling even cutter bar relief. With adjustable spring packages you can change the support pressure from 200 kg up to the full weight of the mower for different applications. The upper frame provides considerable mobility and three-dimensional ground hugging for a clean cut even under extreme conditions. The traction point at the front of the machine makes it easy to pull.

Precision work all along the line
The central, stepless cutting height adjustment is easily set from 3.5 to 7 cm using the manual crank without tools, allowing mowing at the correct height. The tine conditioner intensity is also adjustable without tools so tines can react individually to harvesting conditions. The mower offers excellent manoeuvrability and ground clearance on headlands and roads; the lifting height ensures you pass over swathes on headlands without losses. Fendt Slicer models deliver outstanding forage quality and are designed for user-friendliness.

Technical specifications

• Series / designation: Fendt Slicer (trailed, with transport chassis)
• Available models: Slicer 313 TKC, Slicer 313 TRC
• Working width (TKC / TRC): 3.00 m
• Number of cutting discs (TKC / TRC): 6
• Conditioner options: tine conditioner or roller conditioner
• Drawbar: centre-pivot drawbar allowing mowing to right, left or directly behind tractor
• Cutter bar drive: compact angle drive, each disc driven separately
• Suspension: parallelogram suspension for even cutter bar relief and three-dimensional ground hugging
• Adjustable spring packages: support pressure adjustable from 200 kg to full weight of mower
• Cutting height adjustment: central, stepless, adjustable from 3.5 to 7 cm via manual crank (tool-free)
• Tine conditioner intensity: adjustable without tools
• Design features: robust pivoting gearbox to reduce crosspiece joint angles; traction point at front for easy pulling; high manoeuvrability and road/transport clearances
