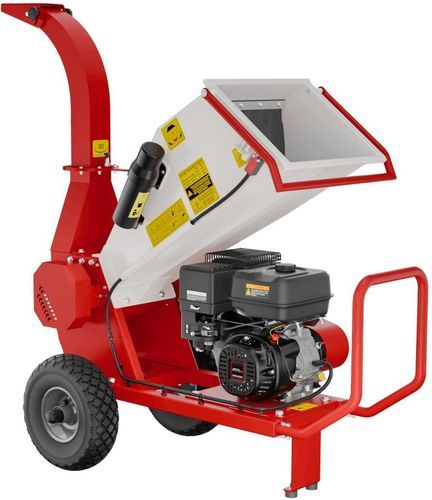

Mounted wood chipper MB-100BD

wheeledgasoline enginewith combustion engine

Overview
MB-100BD is a drum-type gasoline wood shredder engineered for shredding branches, vines and small wood waste up to 100 mm in diameter. Designed for both professional and municipal applications: arborists, landscaping, green maintenance and utility services. The machine offers high productivity, stable operation and safety features compliant with EU standards.

Main benefits

• High throughput for continuous and intensive workloads
• Produces consistent chips (approx. 5–50 mm) suitable for compost, mulch and biomass
• Drum cutting system with hardened AISI 4140 knives for impact resistance and extended service life
• Balanced drum with air blades and inertia flywheel for stable cutting and uniform chip ejection
• Adjustable counter-blade to ensure clean cuts and prevent clogging or "chewing"
• 360° rotatable adjustable discharge deflector for precise chip placement into carts, containers or onto the ground
• Reinforced feeding hopper and safety devices meeting applicable EU norms
• 3-year warranty on the machine (engine warranty per engine manufacturer)

Included / Options

• Standard: MB-100BD shredder with drum, knives and discharge chute
• Optional: spare knife set (selectable)
• User manual available for download (PDF)

Delivery, payment and warranty

• Delivery: pickup at store or courier transport (depends on destination and carrier)
• Payment: cash, bank transfer, Visa/Mastercard and standard B2B payment methods
• Warranty: 3 years for the machine; engine warranty as provided by the engine manufacturer

Technology highlights

• PowerFlow Cutting Module — drum with air blades for clean cuts and steady chip flow
• LineCut and CircleCut hardened blades (AISI 4140) with HFC induction hardening for ~60 HRC cutting edge
• Stabilizing inertia flywheel to keep RPM stable under heavy load and reduce engine stress
• PowerGuard friction clutch — protects the engine by disengaging under overload
• Easy Start friction clutch — smooth engagement when engine reaches working RPM (approx. 1500 rpm)
• Rigid welded and balanced drum construction to minimize vibration

Safety & standards
Manufactured to comply with relevant EU and international safety standards for garden and green-maintenance machinery.

Technical specifications

• Drive type: Gasoline
• Engine power: 20 HP
• Max engine shaft speed: 3600 rpm
• Maximum fuel consumption: 230 g/hph
• Number of knives: 2
• Max. revolutions on working knives: 2400 rpm
• Max. diameter (softwood): 100 mm
• Max. diameter (hardwood): 80 mm
• Size of produced chips: 5–50 mm
• Overall dimensions (operating): Length: 1782 mm
  Width: 760 mm
  Height: 1655 mm
  Weight: 240 kg
• Transport dimensions: Length: 1200 mm
  Width: 800 mm
  Height: 1497 mm
  Transport weight: 262 kg
• Discharge height / ejection reach: up to 1600 mm; chute rotation 360°
• Warranty: 3 years (machine)
