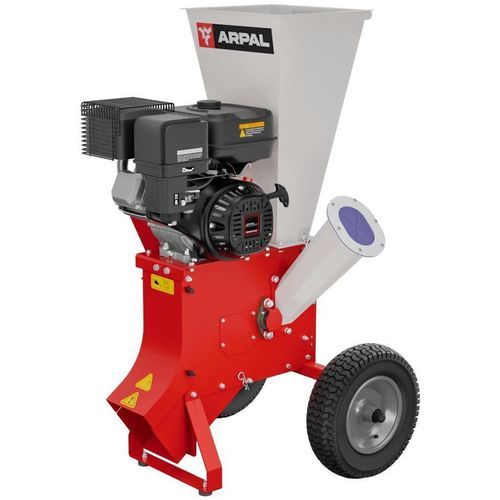

Mounted wood shredder MC-80BD

wheeledgasoline

Overview
The MC-80BD is a gasoline-powered combined wood shredder with two input hoppers. It is designed to shred branches, vines, leaves, bark, grass and small wood waste into calibrated industrial chips suitable for solid-fuel boilers, fireplaces and stoves, or for mulch and fertiliser. The unit focuses on straightforward operation, steady throughput and conformity with applicable European safety standards.

Key features

• Dual-hopper design: side hopper for branches up to 90 mm and top hopper for thin branches, leaves and grass.
• MultiCut combined cutting system: two heavy-duty cutting discs (primary knives) plus a set of hammers for secondary shredding to achieve uniform chip size.
• Calibration sieves included: 25 mm sieve supplied as standard; optional 20 mm and 15 mm sieves for finer chips.
• PowerGuard protective friction clutch: protects the drive by disengaging under excessive load to prevent damage.
• Easy Start friction clutch: smooth clutch engagement at engine idle (approx. 1500 rpm) for jerk-free starts.
• Durable cutting materials: AISI 4140 hardened cutting edges (HFC induction hardened to ~60 HRC) and AISI 5140 for drum blades/hammers for impact resistance and long edge life.
• All-metal powder-coated body and 4 mm steel flange construction for corrosion resistance.
• Transport-oriented design: large pneumatic wheels, balanced center of gravity and removable top hopper for easier vehicle transport and storage.
• Safety features: guards, protective casings and curtains around transmission and feed areas to reduce risk of accidental contact and ejected chips.
• Accessories: optional extra set of knives and additional calibration sieves (20 mm, 15 mm) and spare knife sets.

Usage and performance
The MC-80BD shreds branches (softwood up to 90 mm, hardwood up to 50 mm) and converts garden and agricultural waste into calibrated chips. The unit can operate with or without a sieve (higher throughput without sieve). Chips pass through the selected sieve size (25 / 20 / 15 mm) and are suitable for fuel, mulch or compost applications.

Included / optional items

• Standard: 25 mm calibration sieve.
• Optional: 20 mm sieve, 15 mm sieve, extra set of knives.
• Spare parts and replacement cutting sets available.

Downloads
Manual and technical documentation available for download (user manual in PDF supplied with product).

Overall dimensions and transport
Overall dimensions (working configuration): Length: 851 mm
Width: 827 mm
Height: 1399 mm
Weight (working): 120 kg

Transport configuration (folded/with transport settings): Length: 800 mm
Width: 600 mm
Height: 1535 mm
Weight (transport): 130 kg

Safety & Standards
Designed and manufactured to meet relevant safety and ergonomic standards for safe operation and noise/emission control. Protective shields and double-sided casings enclose transmission components; hopper design and curtains reduce risk of injury and direct ejected chips in a controlled direction.

Applications

• Households and estates — seasonal yard and garden maintenance.
• Arborists and landscape contractors — efficient processing of branches and biomass.
• Farmers and agribusiness — production of fuel chips or mulch.
• Municipal services and community projects — on-site biomass management.

Technical specifications

• Model: MC-80BD
• Drive type: Gasoline
• Engine power: 20 HP
• Max. engine shaft speed: 3600 rpm
• Recommended fuel: A-92 / A-95
• Maximum fuel consumption: 230 g/hph
• Max. diameter (softwood): 90 mm
• Max. diameter (hardwood): 50 mm
• Chip sizes (calibrated): 25 mm (standard), optional 20 mm, 15 mm
• Number of knives / hammers (drum + hammer set): 20 (hammers), 2 (primary knives)
• Included calibration sieve: 25 mm
• Overall dimensions (working): 851 x 827 x 1399 mm (L x W x H)
• Weight (working): 120 kg
• Transport dimensions: 800 x 600 x 1535 mm (L x W x H)
• Weight (transport): 130 kg
• Warranty: 3 years (machine), engine warranty per engine manufacturer
