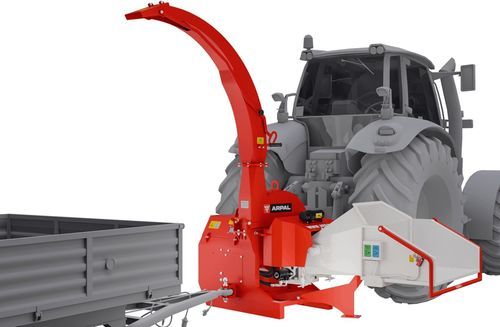

Mounted wood shredder ARPAL MAX

gasoline

Overview
The ARPAL MAX wood shredder is a professional tractor-mounted chipper designed for processing branches and wood waste up to 180 mm in diameter. Equipped with the Antistress electronic control, TurboCut heavy flywheel disc and hardened LineCut/CircleCut blades, it delivers continuous throughput for forestry contractors, municipal services and arborists while meeting EU safety standards.

Key features

• Antistress electronic control: monitors cutting disc RPM and automatically stops or reverses feed to prevent jamming and protect the drive.
• TurboCut flywheel disc (730 mm, 30 mm thick): high mass and diameter ensure stable cutting and chip ejection.
• LineCut / CircleCut hardened blades (AISI 4140 / AISI 5140, HFC induction-hardened edge) for impact resistance and long life.
• Adjustable counter-blade for secure branch fixation and uniform chip size without crushing.
• 360° adjustable discharge chute with deflector for precise chip placement and high ejection height.
• Reinforced hopper and safety guards to prevent accidental contact and withstand heavy-duty use.
• Rigid transport frame with universal hitch; supports tractor–chipper–trailer configurations.
• Powder-coated finish for extended corrosion protection.

Downloads
Instruction manual and product documents available for download.

Storage and transport
Compact storage configuration reduces overall dimensions for safe parking and easy transport; storage dimensions differ from working dimensions to simplify handling.

Technical specifications

• Overall dimensions (working): L 3171 mm × W 1519 mm × H 2603 mm.
• Overall dimensions (storage/transport): L 2130 mm × W 1293 mm × H 2616 mm.
• Weight: 688 kg.
• Tractor mounting axle diameter: 28 mm.
• Drive type: tractor PTO drive.
• Minimum required tractor power: 50 HP.
• Maximum PTO speed: 540 rpm.
• Maximum branch diameter (softwood/hardwood): up to 180 mm.
• Produced chip size: 5–60 mm (adjustable via sieve/screen selection).
• Number of knives on disc: 4 (drum/blade options available).
• Cutting disc: 730 mm diameter, 30 mm thick; balanced after welding.
• Safety & standards: designed to comply with applicable EU safety, hydraulic and acoustic regulations.
• Warranty: 3 years on main components (engine warranty per engine manufacturer).

Options and accessories

• Extra knife sets.
• T8 driveline (cardan shaft).
• Conveyor belts and bagging attachments.
• Calibration sieves and alternative cutting drums.
