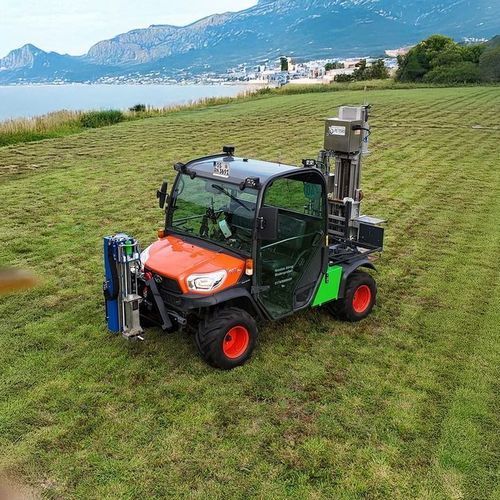

Portable soil sampler DH-1.30

towedvehicle-mountedmounted

Overview
The DH-1.30 is a hydraulic soil sampler engineered for routine field soil sampling in agricultural contexts. It drills to a maximum depth of 30 cm using a hydraulic motor, providing consistent torque and simple operation without onboard batteries or complex electronics.

Key features

• Hydraulic drive for consistent, high torque drilling
• Precision millimetre depth adjustment
• Sampling unaffected by vehicle suspension—consistent core quality
• Two preset depths for rapid switching
• Compact and portable: 43 kg
• Mountable on quad, pickup, trailer or light-duty vehicle
• Electric push-button control panel for straightforward operation
• Sampling cycle time: approximately 5 seconds per core

Ideal applications

• Macronutrient soil sampling
• Precision farming and agronomic monitoring
• Agricultural and environmental research
• Soil health and nutrient mapping

How it works (operation steps)

• 1. Park the vehicle and position the sampler at the desired location.
• 2. Select the sampling depth (adjustable to the millimetre).
• 3. Press the push-button to start hydraulic sampling.
• 4. Retrieve the single automatic soil core for analysis.

Product details
The DH-1.30 adapts the design of electric models to a hydraulic power source for higher torque where hydraulic supply is available. Depth control is precise with millimetre adjustments and two preset positions. Operation is simplified with a one-button interface. At 43 kg the unit is compact enough for mounting on a range of light agricultural vehicles.

Technical specifications

• Model: DH-1.30
• Sampling depth: 0–30 cm
• Sample type: single-core, fully automatic
• Horizons: 1
• Magazines: 1
• Sampling cycle time: ≈ 5 seconds per core
• Mounting options: quad, pickup, trailer or light-duty vehicle
• Control: electric push-button panel with two preset depths
• Power source: hydraulic engine
• Weight: 43 kg
