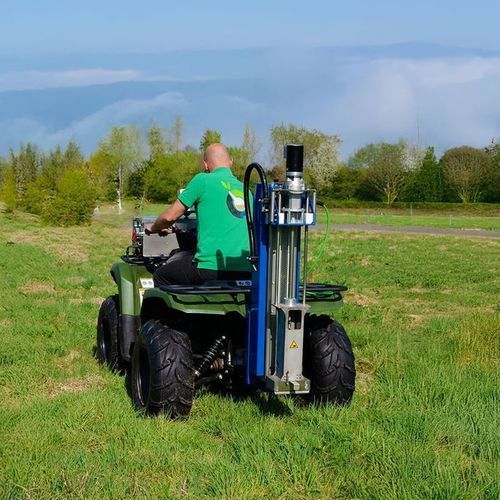

Towed soil sampler DE-1.30

ATV-mountedvehicle-mountedmounted

Overview
The DE-1.30 is a compact electric soil sampler that drills quietly to depths up to 30 cm. Its fully electric drive eliminates fumes and reduces noise, making it suitable for agricultural field sampling and environmental monitoring. Building on the N2012 platform, the unit provides millimetre-precise depth adjustment via an electric drill. The push-button control panel includes two preset depths for rapid switching. Mounting options include quads, pickup, trailer or other light vehicles. Operates from a 24 V external battery pack (sold separately).

Price
From €12,600 (listed price on product page).

What Makes It Great
Based on the reliable N2012, the DE-1.30 uses a precise electric drill with millimetre adjustments to ensure accurate sampling depth across uneven terrain. The simple push-button control and two quick-select depth presets speed up on-field sampling routines. Specifications list the weight as 47 kg while the page text also references 45 kg. Operating voltage is 24 V DC. The unit can be mounted to a range of light vehicles for flexible deployment.

Highlights

• Fully electric drilling for clean, precise sampling
• Millimetre-precise depth adjustment
• Independent of vehicle suspension to avoid depth variation
• Two quick-select depth presets
• Compact and lightweight (specs: 47 kg; page text: 45 kg)
• Runs on a 24 V external battery pack (sold separately)

Ideal For

• Macronutrient soil sampling
• Precision farming workflows
• Agricultural and environmental research
• Soil health and nutrient monitoring programmes

How to Use

• 1. Position the sampler where a soil sample is required.
• 2. Select the target depth using millimetre increments.
• 3. Press the push-button to start the electric drill.
• 4. Extract the soil core for analysis.

Specs & Smarts
Sampling Depth: 0–30 cm
Sample Type: Single-core, fully automatic
Horizons: 1
Magazines: 1
Sampling Cycle Time: 5 sec/core
Mounting Options: Quads, pickup, trailer, or light-duty vehicle
Control: Electric push-button control panel with two preset depths
Operating Voltage: 24 VDC
Weight: 47 kg (page text also references 45 kg)

Technical specifications

• Sampling Depth: 0–30 cm
• Sample Type: Single-core, fully automatic
• Horizons: 1
• Magazines: 1
• Sampling Cycle Time: 5 sec/core
• Mounting Options: Quads, pickup, trailer, or light-duty vehicle
• Control: Electric push-button control panel with two preset depths
• Operating Voltage: 24 VDC
• Weight: 47 kg (page text also references 45 kg)
• Power Source: External 24 V battery pack (sold separately)
