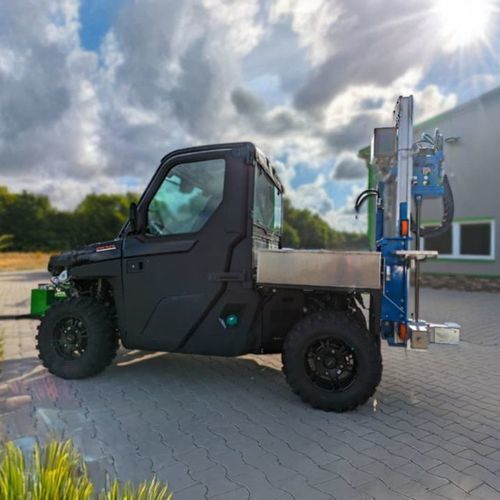

Mounted soil sampler MP-2.60

vehicle-mountedautomatichydraulically-operated

Product overview
The MP-2.60 is an automatic N‑min soil sampling unit designed for field use in precision agriculture and environmental monitoring. It performs impact-driven core sampling down to 60 cm using a high-frequency hydraulic hammer. A grooved sampling rod is driven, rotated hydraulically and retracted to preserve sample integrity, then discharged automatically into waterproof containers. Integrated logic controls sample retention and an optional layer-separation module enables horizon-specific collection. The unit is mountable on pickups, trailers or similar field vehicles and can be upgraded to MP-3.90 or MP-4.100.

Highlights

• Fully automatic extraction to 60 cm
• Configurable logic: keep or discard samples per settings
• Impact-driven sampling with automatic discharge
• Optional layer separation for horizon-specific sampling
• Waterproof sample containers for secure storage
• Adjustable sampling depth and horizon count
• Obstacle detection with safe automatic shutdown
• Designed for routine field operation

Applications

• Nmin / nitrate profiling
• Precision agriculture soil mapping
• Environmental and agronomic soil monitoring
• Cost-effective field sampling with scalable options

How it works

• High-frequency hydraulic hammer drives a grooved rod into the soil.
• Hydraulic rotation and retraction preserve core integrity.
• Collected cores are automatically discharged into waterproof containers.
• Optional layer separation sorts samples by horizon during extraction.

Up close & demo
Product presentation includes large product imagery and a demo overlay; playable demo media is provided on the product page.

Technical specifications

• Sampling depth: 0–60 cm
• Sampling type: impact-driven, fully automatic
• Hammer unit: hydraulic, high-frequency
• Horizons: 1–2 layers (optional)
• Magazines: 3
• Sampling cycle time: 18 s per core
• Mounting options: pickup, trailer or similar field vehicle
• Sample sorting: automatic with horizon-specific separation
• Special features: obstacle detection, waterproof containers, digital keyboard
• Power source: hydraulic (135 bar, 20 l/min) with 12 VDC control
• Weight: 200 kg
