Vehicle-mounted soil sampler MP-4.100

mounteddepthhydraulically-operated

Product overview

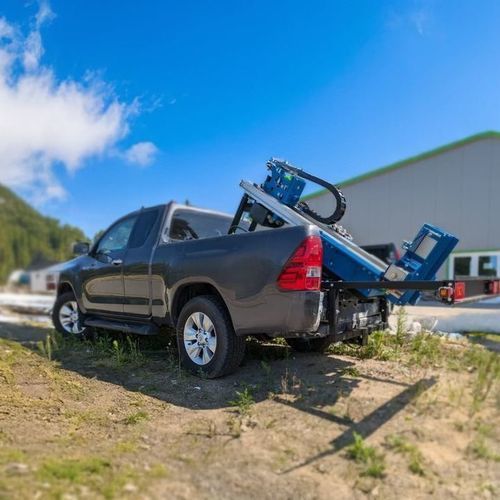

The UltraDepth MAX MP-4.100 is a fully automatic soil sampler designed for field use. It reaches sampling depths up to 100 cm, extracts up to four distinct horizons and deposits each horizon into a dedicated, waterproof container. The unit is intended for mobile field operations and mounts to pickups, trailers or light-duty vehicles.

Key functions
This system uses a high-frequency hydraulic impact hammer combined with a grooved sampling rod and auger to obtain compact, science-grade cores. Integrated logic controls retainment or discard of material according to operator settings and coordinates horizon separation during retraction.

Highlights

• Fully automatic extraction to 100 cm
• Optional 4-layer horizon separation for targeted sampling
• Automatic discharge and in-line sample sorting
• Programmable logic to keep or discard material
• Adjustable sampling depth and horizon count
• Mountable on pickup trucks, trailers or light vehicles
• Obstacle detection with automatic shutdown
• Waterproof sample containers
• Digital keyboard for in-field adjustments
• Designed for repeated field cycles

Applications

• Deep soil profiling
• Environmental and agricultural field studies
• Nmin / nitrate sampling and monitoring
• Precision agriculture and soil fertility mapping
• Any fieldwork requiring controlled horizon-specific samples

Operation

• Drives a grooved rod into soil by means of a high-frequency hydraulic hammer
• Hydraulically rotates and retracts the rod for smooth extraction without manual effort
• Automatically empties auger contents into designated containers during retraction
• Distributes sample material into separate containers according to defined horizon breaks

Specs & Smarts (key parameters)
Sampling depth: 0–100 cm
Sampling type: Impact-driven, fully automatic
Hammer unit: Hydraulic, high-frequency
Horizons: 1–4 layers (configurable)
Magazines: 4
Sampling cycle time: 22 s per core
Mounting options: Pickup, trailer, or light-duty vehicle
Sample sorting: Automatic, horizon-specific separation
Special features: Obstacle detection, waterproof containers, digital keyboard
Power source: Hydraulic system (135 bar, 20 l/min, 12V DC)
Weight: 215 kg

Technical specifications

• Sampling depth: 0–100 cm
• Sampling type: Impact-driven, fully automatic
• Hammer unit: Hydraulic, high-frequency
• Number of horizons: 1–4
• Magazines: 4
• Sampling cycle time: 22 s per core
• Mounting options: Pickup, trailer, light-duty vehicle
• Sample sorting system: Automatic horizon separation
• Special features: Obstacle detection, waterproof containers, digital keyboard
• Power: Hydraulic (135 bar, 20 l/min, 12V DC)
• Weight: 215 kg
