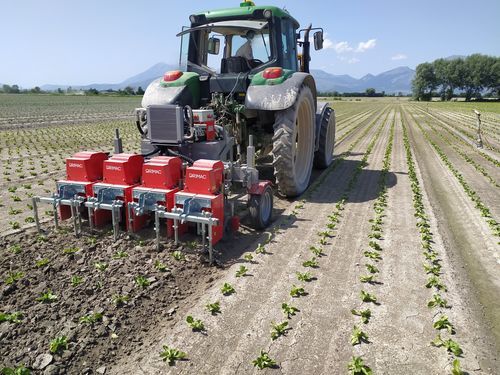

Automatic row crop cultivator ZIP.04

tractor-mountedweeding

Overview
ZIP is available in 6 versions, with one to six mechanical weeding modules depending on the transplanter used. Each ZIP is adjusted to the working area and other equipment, delivering a modular inter-row weeding solution tailored to the crop layout.

Models

• DRIMAC ZIP.01 — Most versatile; weight 350 kg and compact dimensions allow operation with low-power tractors (from 30 HP).
• DRIMAC ZIP.02 — Suitable for companies working with multiple planting layouts; low weight enables timely field intervention.
• DRIMAC ZIP.03 — Versatile for small to medium farms with varied crops and layouts; three lightweight modules reduce processing times to approximately 3.5 hours/ha.
• DRIMAC ZIP.04 — Four-module machine managing multiple planting patterns; frame with movable elements reaches up to 3 m width.
• DRIMAC ZIP.05 — Five modules recommended for very large crops; best performance when adapted to the transplanter layout.
• DRIMAC ZIP.06 — Six independent modules for large-area operations; covers extensive surfaces in relatively short times.

Components

• HOE TOOL — Blade profile designed for effective mechanical weeding.
• SWITCHBOARD — Start/stop, control and safety functions.
• DASHBOARD — Enables machine control from the tractor cab.
• HYDRAULIC SYSTEM — Includes tank and hydraulic components.
• MODULE LOCKING SYSTEM — Ensures safe road transport.

Optional

• Movable elements to adapt to specific planting layouts.
• Operator panels for electronic management of intervention margins.
• Hoes and discs for inter-row finishing.
• Weeding element positioned on the tractor track.

How it works
The ZIP system is designed to be simple and intuitive: sensors detect plant position and spacing, triggering the mechanical arm that performs the weeding operation.

Technical specifications

• Available versions: 1 to 6 modules (ZIP.01 to ZIP.06).
• ZIP.01 weight: 350 kg.
• Recommended tractor power for smallest model: from 30 HP.
• ZIP.03 typical processing time: approximately 3.5 hours/ha.
• ZIP.04 maximum frame width: up to 3 m (elements movable on frame).
• ZIP.06: six completely independent modules for very large surfaces.
• Main systems: hoe tool, switchboard (control & safety), dashboard (cab control), hydraulic system (tank + hydraulics), module locking system for road transport.
• Customization: movable elements, electronic margin control panels, hoes/discs for finishing, weeding element on tractor track.
