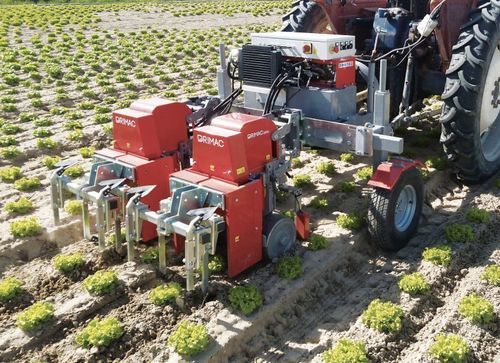

Automatic row crop cultivator ZIP.02

tractor-mountedweeding

Overview
ZIP is an adjustable inter-row mechanical weeder available in 6 versions (1 to 6 modules). Each unit is configured according to the work area and the transplanting equipment, providing a tailored solution for a variety of row crops.

Models

• DRIMAC ZIP.01: Most versatile; weight 350 kg and compact size allow operation across different plant spacings with low-power tractors (~30 HP).
• DRIMAC ZIP.02: Designed for businesses handling multiple planting layouts; low weight enables quick, timely interventions.
• DRIMAC ZIP.03: Suitable for small to medium farms with varied crops and spacings; three-module configuration reduces working time to approx. 3.5 hours/ha.
• DRIMAC ZIP.04: Four-module machine managing diverse planting schemes; adjustable frame with movable elements up to 3 m width.
• DRIMAC ZIP.05: Five-module version recommended for very large crops; optimal when adapted to the transplanting layout.
• DRIMAC ZIP.06: Six independent modules for extensive areas; covers large surfaces in relatively short times.

How it works
Sensors detect plant position and spacing to trigger the mechanical arm that performs the weeding. The ZIP system is designed for simple, intuitive operation from the tractor cab.

Components

• Hoe tool: Blade shaped for effective soil action.
• Switchboard: Start/stop, control and safety functions.
• Dashboard: Allows machine control from the tractor cab.
• Hydraulic system: Includes tank and hydraulic circuit.
• Module locking system: Ensures safe road transport.

Optional
Available customizations: movable elements, operator panels for electronic margin adjustment, hoes and discs for inter-row finishing, and a weeding element for the tractor track.

Technical specifications

• Versions: 1 to 6 modules (ZIP.01–ZIP.06).
• ZIP.01 weight: 350 kg; suitable for low-power tractors (~30 HP).
• ZIP.03: 3 modules; processing time approx. 3.5 hours/ha.
• ZIP.04: Frame adjustable up to 3 m width.
• ZIP.05: 5 modules; recommended for very large crops.
• ZIP.06: 6 independent modules for large areas.
• Control: dashboard for cab control; switchboard for start/stop, control and safety.
• Hydraulics: tank and complete hydraulic system included.
• Transport: module locking system for safe road transport.
