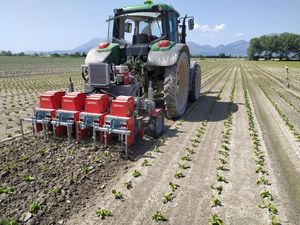

Automatic row crop cultivator ZIP.05

tractor-mountedweeding

Overview
ZIP is available in six versions with 1 to 6 weeding modules depending on the transplanter used. Each unit is adjusted to the working area and associated equipment, providing a tailored solution for field weed control.

Models

• DRIMAC ZIP.01: Most versatile; weight approx. 350 kg and compact dimensions enable use on all planting layouts with low-power tractors (from 30 HP).
• DRIMAC ZIP.02: Suitable for companies working with different planting layouts; low weight allows timely interventions.
• DRIMAC ZIP.03: Versatile for small and medium farms with varied crops and layouts; three lightweight modules enable fast interventions and can reduce processing time to about 3.5 hours/ha.
• DRIMAC ZIP.04: Four-module machine managing different planting layouts; frame adjustable up to 3 m width.

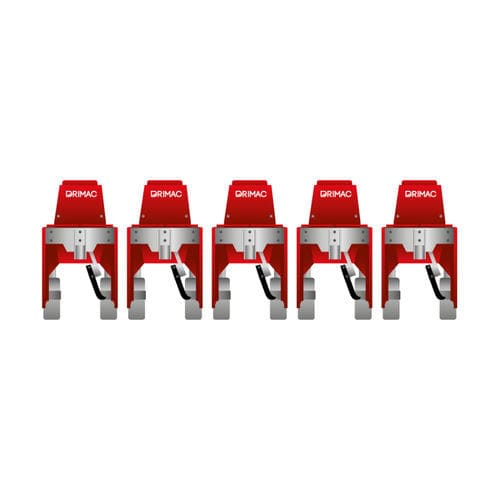

• DRIMAC ZIP.05: Five modules, recommended for very large crops; best performance when adapted to transplanter layout.
• DRIMAC ZIP.06: Six independent modules for covering very large areas in relatively short times.

Components

• HOE TOOL: Blade shaped for more effective action.
• SWITCHBOARD: Machine start/stop function, control and safety.
• DASHBOARD: Allows machine control from the tractor cab.
• HYDRAULIC SYSTEM: Integrated tank and hydraulic components.
• MODULE LOCKING SYSTEM: Secures modules for safe road transport.

Optional

• Movable elements to adapt the machine to different layouts.
• Operator panels for electronic adjustment of working margins.
• Hoes and discs for inter-row finishing.
• Weeding element for the tractor track.

How it works
The ZIP system uses sensors to read plant positions and spacing, activating mechanical arms that perform mechanical weeding precisely and intuitively.

Technical specifications

• Available configurations: 1 to 6 modules (ZIP.01 to ZIP.06).
• ZIP.01 weight: approximately 350 kg.
• Recommended tractor power for ZIP.01: from 30 HP.
• Indicative processing time for ZIP.03: about 3.5 hours/ha.
• ZIP.04 frame width adjustable up to 3 m.
• ZIP.06: six independent modules for rapid coverage of large areas.
• Hydraulic system: integrated tank and hydraulic circuit for module operation.
• Safety: module locking system for secure road transport.
