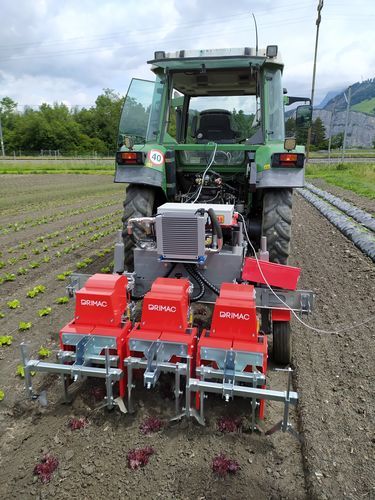

Automatic row crop cultivator ZIP.03

tractor-mountedweeding

Overview
ZIP is a range of mechanical inter-row weeders available in six configurations (1 to 6 modules). Each unit is adjusted to the working width and to the transplanting equipment, providing a tailored solution for different crop layouts.

Models

• DRIMAC ZIP.01: Most versatile; weight 350 kg; compact dimensions allow use with low-power tractors (from 30 HP).
• DRIMAC ZIP.02: For farms with varied planting layouts; low weight enables quick interventions.
• DRIMAC ZIP.03: Suited to small–medium farms with mixed crops; 3 modules reduce processing times to approx. 3.5 hours/ha.
• DRIMAC ZIP.04: Four-module frame with movable elements; frame width adjustable up to 3 m.
• DRIMAC ZIP.05: Five modules; recommended for very large cultivated areas; best performance when matched to the transplanter layout.
• DRIMAC ZIP.06: Six independent modules for covering very large surfaces in relatively short times.

How it works
The ZIP system uses sensors to detect plant position and spacing, triggering a mechanical arm that performs the weeding action along the row.

Components

• HOE TOOL: Shaped blade designed for effective soil action.
• SWITCHBOARD: Controls machine start/stop, safety and basic control functions.
• DASHBOARD: Enables machine monitoring and adjustments from the tractor cab.
• HYDRAULIC SYSTEM: Tank and hydraulic components for module movement and operation.
• MODULE LOCKING SYSTEM: Secures modules for safe road transport.

Optional / Customization
Available options to adapt the machine to specific needs:

• Movable elements for frame width adjustment
• Operator panels for electronic adjustment of intervention margins
• Hoes and discs for inter-row finishing
• Weeding element for tractor wheel track

Technical specifications

• Configurations: 1 to 6 modules (ZIP.01–ZIP.06)
• ZIP.01 weight: 350 kg
• Minimum tractor power for ZIP.01: 30 HP
• ZIP.03 (3 modules): processing time example ≈ 3.5 hours/ha
• ZIP.04 frame maximum width (movable elements): up to 3 m
• ZIP.06: six independent modules for large areas
• Plant detection sensors and mechanical arm for processing
• Hydraulic system with tank
• Control via dashboard from tractor cab and switchboard for start/stop and safety
• Module locking system for road transport
