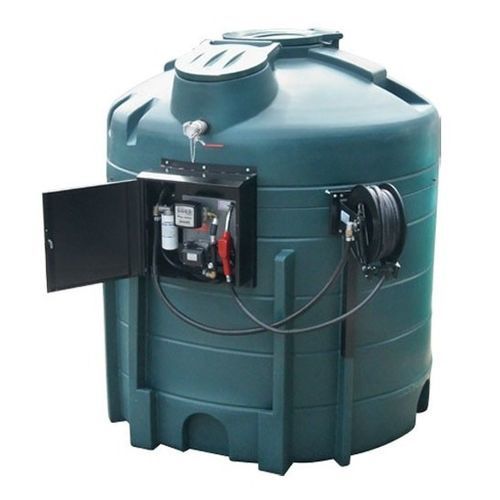

Fuel tank DFD5000EROLL

verticalUV-resistantwith dispensing pump

Presentation
DISTRIFIOUL 5000EROLL. Double-wall storage tank for diesel and heating oil (GNR). Supplied with pump (56 L/min) in a cabinet, 13 m hose reel and ultrasonic level gauge. Pump power and flow may vary by version (230V / up to 60 L/min).

Main characteristics

• Double-wall tank (5000 L storage capacity)
• Manhole Ø50 cm for internal cleaning, lockable
• Access hatch for filling system and leak detection probe
• UV-resistant treatment
• Fire-fighting coupling 2'' with non-return valve
• Automatic dispensing nozzle with 6 m hose
• Automatic fill limiter
• Ultrasonic gauge and leak detector
• Water and particle filters
• Mechanical flow meter with 4-digit totalizer
• Triple filtration system
• Hose reel optional (automatic on ROLL models)

Additional product features

• Ladder mounting position
• HDPE cabin with door and double lock (on PP models only)
• Automatic hose reel (on ROLL models only)
• Metal cabinet with lock (on E models)

Warranty / Compliance / Origin
Tank: 10 years warranty. Parts: 1 year warranty.
Made in France.
Compliant with EN 13341.

Technical sheet
Height (m) : 2.400–2.500 (depending on version)
Width (m) : 0.000
Depth (m) : 0.000
Weight (kg) : 350
Diameter (m) : 2.120–2.150
Key : A
Capacity (L) : 5000

Technical specifications

• Product reference: DFD5000EROLL
• Commercial model: DISTRIFIOUL 5000EROLL
• Capacity: 5000 L
• Double-wall tank construction
• Pump supplied: 56 L/min (in cabinet) – 230V / 60 L/min available depending on version
• Hose reel supplied: 13 m (automatic reel on ROLL models)
• Ultrasonic gauge and ultrasonic leak detector
• Automatic dispensing nozzle with 6 m hose
• Mechanical flow meter and 4-digit totalizer
• Water and particle filters; triple filtration system
• Manhole Ø50 cm for access and cleaning
• UV-resistant treatment
• Fire-fighting coupling 2'' with non-return valve
• Weight: 350 kg
• Diameter: 2.120–2.150 m
• Height: 2.400–2.500 m
• Key: A
