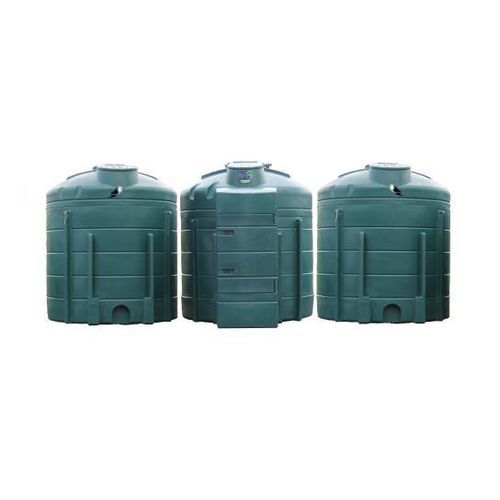

Fuel tank DFD15000C120ROLL

verticalUV-resistantdouble-walled

Presentation
The DISTRIFIOUL 3×5000 L fuel storage tanks are double-walled tanks. DISTRIFIOUL COMBO 15,000 L units are supplied with a 100 L/min pump, an 8 m hose reel and an ultrasonic gauge housed in an HDPE cabinet.

Equipment delivered

• 100 L/min pump
• 8 m hose reel
• Ultrasonic gauge integrated in an HDPE cabinet

Use and advantages
Designed for modern diesel fuel. It is possible to operate one compartment at a time (3 × 5,000 L), allowing cleaning of one compartment while the others remain in service. Suitable for summer and winter fuel storage.

General characteristics

• Manhole Ø50 cm for cleaning, secured with a lock
• Access hatch to the filling system and leak probe
• High‑definition UV protective treatment
• Fire‑fighting connection 2"
• Automatic nozzle with 8 m hose reel
• Fill limiter
• Ultrasonic gauge and leak detector
• Water and particle filter
• Flowmeter and 4‑digit totalizer
• Triple filtration system

Warranty and compliance
Tank warranty: 10 years; parts: 1 year according to general sales conditions. Made in France. Compliant with EN 13341.

Technical specifications

• Capacity: 15,000 L (DISTRIFIOUL COMBO configuration: 3 × 5,000 L)
• Product reference: DFD15000C120ROLL
• Type: double‑walled tank
• Number of compartments: 3 (ability to use one compartment at a time)
• Supplied pump: 100 L/min
• Hose reel: 8 m (with automatic nozzle)
• Gauge: ultrasonic (housed in HDPE cabinet)
• Manhole: Ø50 cm (lockable)
• Fire connection: 2"
• Filtration: water and particle filter + triple filtration system
• Measurement: flowmeter and 4‑digit totalizer
• Treatment: high‑definition UV protection
• Dimensions: Height 2.51 m, Width 2.12 m, Depth 7.17 m
• Key: C
