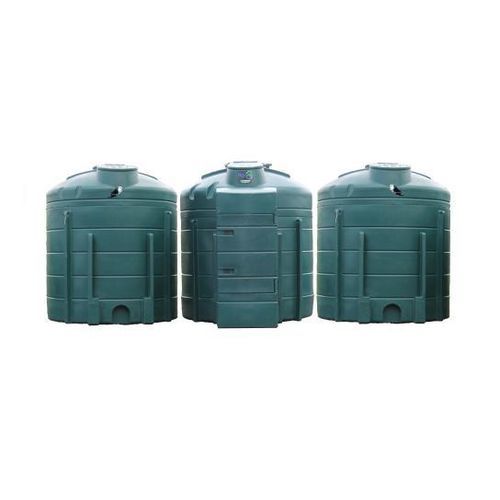

Fuel tank DFD15000C120

verticalUV-resistantwith dispensing pump

Commercial name
DISTRIFIOUL COMBO 3x5000 C120

Short description
Double-wall storage tanks DISTRIFIOUL COMBO 15,000 L (3 × 5,000 L) for fuel oil and off-road diesel (GNR). Supplied with a 100 L/min pump in a PEHD cabinet and an ultrasonic level gauge.

Detailed description
The DISTRIFIOUL COMBO fuel storage system consists of three 5,000 L double-wall compartments (total 15,000 L) for secure on-site storage of fuel oil and GNR. The unit is delivered with a 100 L/min pump mounted in a PEHD lockable cabinet and an ultrasonic gauge. Compartments can be used independently to allow cleaning or maintenance on one tank while the others remain in service. Designed for seasonal fuel management (summer/winter), manufactured in France, with a 10-year tank warranty and 1-year parts warranty. Compliant with EN 13341.

General features

• Manhole Ø50 cm for cleaning, secured with lockable cover
• Access hatch for filling system and leak detection probe
• UV-resistant high-definition surface treatment
• 2" fire-fighting coupling with non-return valve
• Automatic nozzle with 6 m hose
• Fill limiter
• Ultrasonic gauge and leak detector
• Water and particulate filter
• Flowmeter and 4-digit totalizer
• Triple filtration system
• Hose reel available as option

Product highlights

• Double-wall fuel tanks with total capacity of 15,000 L (3 × 5,000 L)
• Provision for ladder access
• PEHD cabinet with door and double lock
• Supplied with 100 L/min pump in PEHD cabinet
• Ultrasonic level gauge

Technical specifications

• Height (m): 2.400
• Width (m): 2.120
• Depth (m): 6.360
• Weight (kg): 770.000
• Diameter (m): 0.000
• Key: A
• Capacity (L): 15000
• Visible product reference: DFD15000C120
• Compliance: EN 13341
• Warranty: tank 10 years, parts 1 year
• Manufacturing: France
