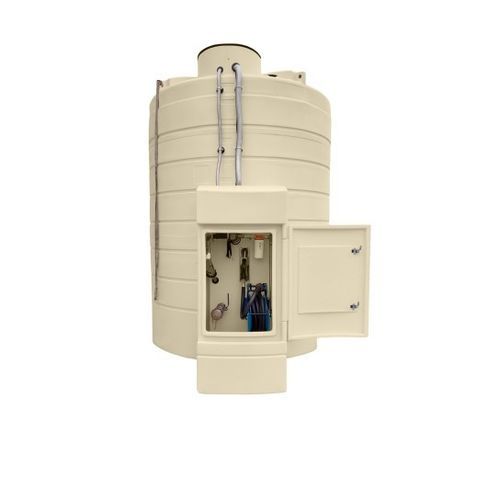

Fuel tank DPR12002-BDverticalpolyethyleneUV-resistant
Add to favorites
Compare this product
Characteristics
- Fluid
- fuel
- Construction
- vertical
- Material
- polyethylene
- Other characteristic
- storage, UV-resistant, double-walled, with dispensing pump
- Volume
12,000 l
(3,170 gal)
Description
Advantages of the B100 tank from Duraplas
Technical data
Height (m) : 3500
Width (m) : 3310
Weight (kg) : 210
Diameter (m) : 2500
Key : C
Capacity (L) : 12000
Additional product benefits
Characteristics / technical specifications
- Handling rings for easier movement and installation
- UV15 protection (improved impact and UV resistance, twice as resistant as standard UV8 polyethylenes)
- Special B-100 pump 85 L/min for optimized service life
- Integrated pumping system housed in a lockable HDPE compartment
- 8 m automatic hose reel specially designed for B100 vehicle refuelling
- Remote ultrasonic level sensor for remaining volume display (gauge mounting possible)
- 3" coupling for truck offloading, followed by a 2" stainless steel shut-off valve
- 3-valve bypass system to prevent blockages in case of clogged filter
- External manhole Ø41 cm with Ø35 cm lid (half-turn opening) for access and internal inspection
- Ribbed tank for improved rigidity
- Model with internal rigid wall
Technical data
Height (m) : 3500
Width (m) : 3310
Weight (kg) : 210
Diameter (m) : 2500
Key : C
Capacity (L) : 12000
Additional product benefits
- Mechanical B-100 fill limiter
- Automatic filling with automatic disengagement and automatic stop at full level
- Integrated retention for recovery of biodiesel between the walls in case of overflow
- Ready-to-use solution reducing civil engineering costs
Characteristics / technical specifications
- Product reference: DPR12002-BD
- Material and design: HDPE (high-density polyethylene) specifically designed for biodiesel (double wall)
- Capacity: 12,000 L
- Dimensions: height 3,500 m • width 3,310 m • diameter 2,500 m
- Weight: 210 kg
- Wall: model with internal rigid wall
- Pump: B-100 pump 85 L/min included (housed in lockable HDPE compartment)
- Accessories: 8 m automatic hose reel for B100, remote ultrasonic sensor (gauge possible), 3" coupling + 2" stainless steel valve, 3-valve bypass system
- Access opening: manhole Ø41 cm and lid Ø35 cm (half-turn opening)
- Rigidity: ribbed tank for improved rigidity
- Warranty: tank 5 years, accessories 1 year
