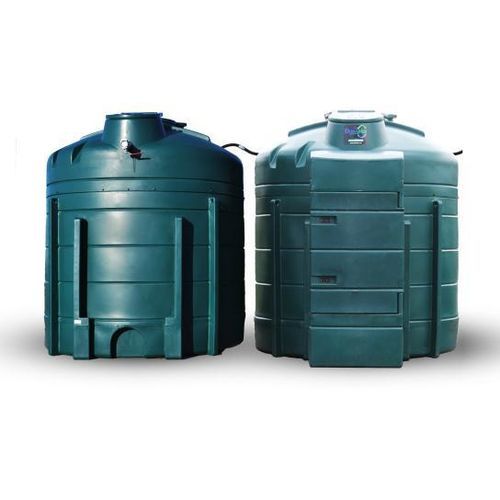

Fuel tank DFD10000C120ROLL

verticalwith dispensing pumpdouble-walled

Overview
DISTRIFIOUL COMBO 2x5000 C120ROLL — double-wall storage tanks for fuel oil and off-road diesel (GNR). Total capacity 10 000 litres (2 x 5 000 L) enabling use of one compartment while the other is cleaned during operation. Supplied with pump in HDPE enclosure, ultrasonic level gauge and 8 m hose reel. Suitable for both summer and winter storage.

Equipment and supplied items

• Pump (specified 110 L/min in the description; 100 L/min indicated on some labels)
• HDPE enclosure with door and double lock (on C models)
• Ultrasonic level gauge
• 8 m hose reel
• Flow meter and 4-digit totalizer
• Water and particle filter
• Triple filtration system
• Automatic fuel nozzle
• Fill limiter
• Ultrasonic leak detector and gauge
• 2'' fire-fighting coupling with non-return valve
• Access hatch to filling system and leak probe
• Manhole Ø50 cm for cleaning, secured with keyed lock

Key features

• Double-wall fuel tanks
• HDPE enclosure with door and double lock (C models)
• Metal cabinet with lock (E models)
• Unique DISTRIFIOUL COMBO solution on the market for increased storage

Warranty & compliance
Tank: 10 years warranty; parts: 1 year. Made in France. Compliant with EN 13341.

Technical specifications

• Capacity (L): 10000
• Configuration: 2 compartments (2 x 5000 L)
• Product reference: DFD10000C120ROLL
• Model / designation: C120ROLL (DISTRIFIOUL COMBO)
• Type: double-wall storage tank
• Pump: 110 L/min (alternative 100 L/min on some labels)
• Enclosure: HDPE (protective enclosure for pump and equipment)
• Gauge: ultrasonic
• Hose reel: 8 m
• Filtration: water and particle filter, triple filtration system
• Meters: flow meter and 4-digit totalizer
• Safety: ultrasonic leak detector, fill limiter, automatic nozzle, access hatch and manhole Ø50 cm secured with keyed lock
• Connection: 2'' fire-fighting coupling with non-return valve
• Origin: Made in France
