Fuel tank DFD5000E

verticalUV-resistantdouble-walled

Overview

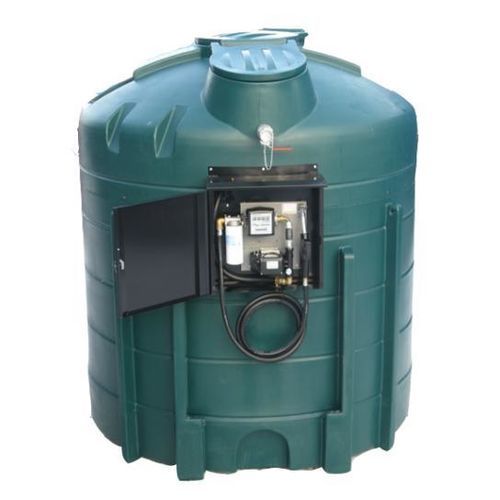

The DISTRIFIOUL 5000E double-walled fuel tank is a 5000 L storage tank for diesel and gasoil (GNR), delivered equipped with a 56 L/min pump housed in a lockable metal cabinet and an ultrasonic level gauge with leak detector.

Equipment and features

• Ø50 cm manhole for internal cleaning, secured with a lock
• Access hatch to the filling system and leak probe
• UV-resistant treatment for the 5000 L tank
• 2'' firefighter coupling with non-return valve
• Automatic nozzle with 6 m hose
• Automatic filling limiter
• Ultrasonic gauge and leak detector
• Water and particle filter
• Flowmeter and 4-digit totalizer
• Triple filtration system
• Hose reel available as an option

Product benefits

• Double-walled 5000 L fuel tank suitable for on-site refuelling of vehicles and equipment
• Provision for ladder access
• Lockable metal cabinet housing the pump

Warranty and compliance
Tank warranty: 10 years (parts: 1 year). Manufactured in France. Compliant with EN 13341.

Technical specifications

• Product reference: DFD5000E
• Commercial name: DISTRIFIOUL 5000E
• Capacity: 5000 L
• Height: 2.400 m
• Diameter: 2.120 m
• Weight: 307 kg
• Width: 0.000 m (value provided on the product sheet)
• Depth: 0.000 m (value provided on the product sheet)
• Key: A
• Provided pump: 56 L/min (housed in cabinet)
• Nozzle: automatic, 6 m hose
• Firefighter coupling: 2'' with non-return valve
• Gauge: ultrasonic (gauge + ultrasonic leak detector)
• Filtration: triple filtration system, water & particle filter, flowmeter and 4-digit totalizer
• Options: hose reel optional
