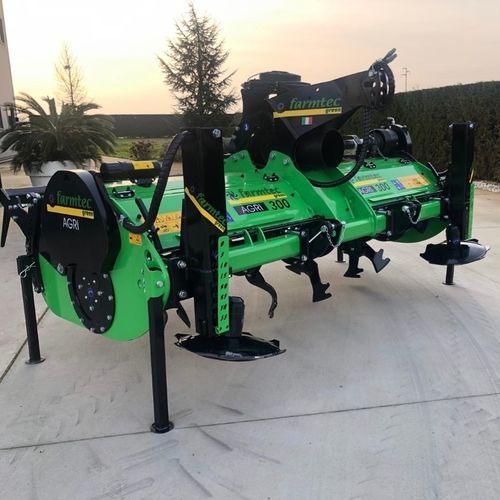

Rotary plow AGRI

not specifiedmountedwith hydraulic adjustment

Overview
The AGRI rotary plough is designed for agricultural use with tractors in the 200–300 HP range (base models) and is available in D (double transmission, 250–500 HP) and P (folding frame, 300–600 HP) variants. It operates on all soil types and in varied weather conditions up to a maximum working depth of 45 cm. Special-profile hoes break the soil without creating a working sole and mix crop residues evenly through the worked profile, while efficient PTO utilization improves field performance compared with a traditional plough.

Details & components

• Rear power take-off (PTO)
• Farmtec Green design hoe
• Single depth control discs
• Gearbox mounted at the side
• Radiator
• Rear rake

Standard configuration

• Universal 3-point hitch category 3
• Universal hitch categories 3 and 4 (AGRI-P only)
• PTO usable at 750/1000 rpm
• Rear rake
• Single depth control discs
• Rear power take-off
• Double transmission (AGRI-D and AGRI-P only)
• Transversal PTO shaft with bolt limiter
• Universal PTO shaft with disc limiter (AGRI-D only)
• Transversal PTO shaft with bolt limiter (AGRI-P only)

Configuration on request

• Hydraulic system on rear rake
• Hydraulic system on depth control discs
• Bonnet protection plastics
• Rear PTO (AGRI-D only)
• Complete subsoiler with support
• Rotary harrow or tiller attachment kit
• Transversal PTO shaft with automatic clutch
• Transversal PTO shaft with automatic clutch (AGRI-P only)
• Hoes with wear-resistant material coating
• Table kit with lights

Models (table)
Model - Working width (cm) - Width on the road (cm) - Max working depth (cm) - No. hoes - Weight (Kg)
AGRI 300 - 300 - 320 - 40 - 22 - 2130
AGRI 350 - 350 - 370 - 40 - 26 - 2310
AGRI 400 - 400 - 420 - 40 - 30 - 2490
AGRI 300 D - 300 - 320 - 40 - 22 - 2480
AGRI 350 D - 350 - 370 - 40 - 26 - 2660
AGRI 400 D - 400 - 420 - 40 - 30 - 2840
AGRI 450 P - 450 - 300 - 40 - 36 - 4280
AGRI 600 P - 600 - 300 - 40 - 44 - 4890

Working depth image / note
Maximum working depth: 45 cm (illustrated in the working depth graphic).

Technical specifications

• Suitable tractors: base models 200–300 HP; AGRI-D: 250–500 HP; AGRI-P: 300–600 HP
• Maximum working depth: 45 cm
• Hoes with special profile to avoid formation of a working sole and to mix residues evenly
• Available transmissions: double transmission on AGRI-D and AGRI-P
• PTO: usable at 750/1000 rpm; rear PTO available depending on model
• Standard and optional configurations include multiple PTO shaft types, hydraulic options, protective plastics, subsoiler and tiller/harrow kits
• Model range: working widths from 300 to 600 cm; weights approximately 2,130–4,890 kg
