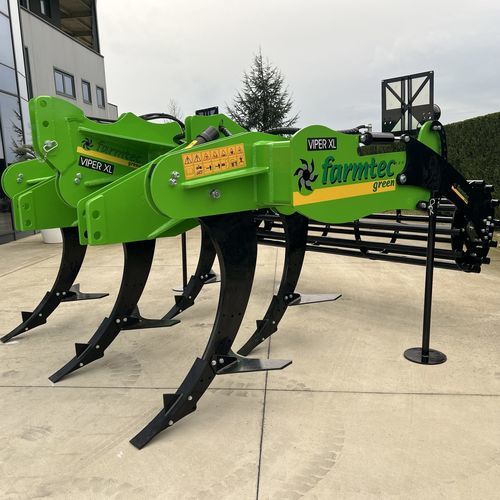

3-shank subsoiler VIPER

5-shankwith hydraulic adjustmentwith roller

Product overview

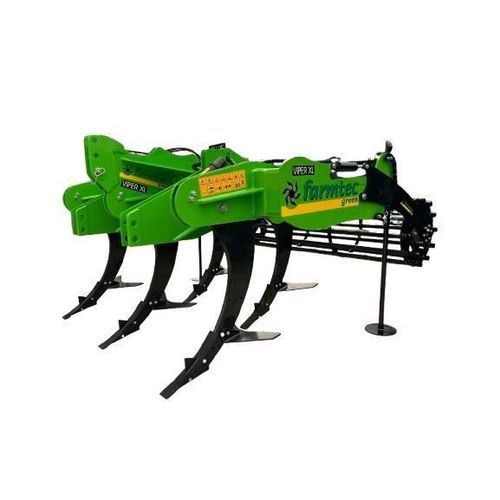

The VIPER subsoiler is a heavy-duty deep-loosening implement for tractors from 60 to 600 HP depending on model. Its V-frame geometry and swan-neck anchors enable high working depths with reduced clogging, ensuring consistent soil penetration on challenging terrain.

Key details

• V-frame chassis for increased penetration and anti-blocking performance
• Special swan-neck anchor design with safety bolt and anchor saver with stopper
• Reversible tip with clod breaker
• Exploders (soil clod breakers) fitted as standard
• Cage roller for VIPER S; self-cleaning double roller for VIPER M and XL
• Manual or hydraulic roller adjustment depending on model
• Suitable tractor power range: approx. 60–600 HP depending on model

Standard configuration

• Universal attachment Cat. 2 (VIPER S)
• Universal attachment Cat. 2 and 3 (VIPER M)
• Universal attachment Cat. 3 and 4 (VIPER XL)
• Reversible tip with clod breaker
• Exploders
• Safety bolt on anchor with stopper
• Cage roller with manual adjustment (VIPER S)
• VIPER double roller with manual adjustment (VIPER M)
• VIPER double roller with hydraulic adjustment (VIPER XL)

Configuration on request

• Tip with wear‑resistant material coating
• Exploders with wear‑resistant coating (pair)
• Hydraulic roller adjustment
• Manually foldable containment flaps (VIPER M and XL)
• Hydraulically foldable containment flaps (VIPER M and XL)
• Additional anchor kit
• Table kit with lights
• Hydropneumatic version

Model specifications - VIPER S
Model | Width cm | Working depth cm | Anchors | Weight Kg
VIPER S3 | 150 | 50 | 3 | 750
VIPER S5 200 | 200 | 50 | 5 | 950
VIPER S5 250 | 250 | 50 | 5 | 1050
VIPER S5 300 | 300 | 50 | 5 | 1150

Model specifications - VIPER M
Model | Width cm | Working depth cm | Anchors | Weight Kg
VIPER M3 | 175 | 65 | 3 | 1450
VIPER M5 | 250 | 65 | 5 | 1650

Model specifications - VIPER XL
Model | Width cm | Working depth cm | Anchors | Weight Kg
VIPER XL5 | 320 | 80 | 5 | 2450

Technical specifications

• Recommended tractor power: 60–600 HP depending on model
• Frame geometry: V structure for deeper penetration and reduced clogging
• Anchor design: swan-neck anchors with safety bolt and stopper protection
• Working depth: up to 80 cm depending on model (see model tables)
• Roller options: cage roller (VIPER S), double roller (VIPER M manual, VIPER XL hydraulic)
• Exploders and reversible tip with clod breaker as standard; wear‑resistant coatings available as option
• Attachment categories vary by model: S (Cat. 2), M (Cat. 2 & 3), XL (Cat. 3 & 4)
• Optional features: hydraulic roller adjustment, foldable containment flaps, additional anchor kits, lighting kit, hydropneumatic version
• Weights and widths vary by model (see tables above)
