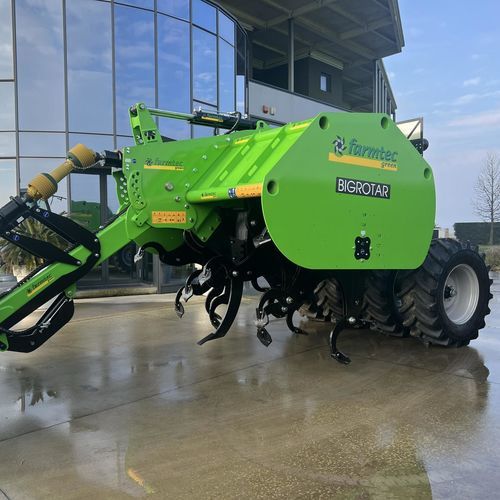

Rotary plow BIGROTAR

not specifiedtowedmounted

Overview The BIGROTAR rotary plough is designed for deep mixing and loosening of soil on poplar plantations, orchards, vineyards and vegetable crops. It supports soil regeneration in areas with residue accumulation and reaches maximum working depths up to 150 cm depending on the version.

Versions

• BIGROTAR G — trailed version for tractors from 200 to 500 HP; maximum working depth up to 150 cm
• BIGROTAR H — mounted version for tractors from 250 to 500 HP; maximum working depth up to 110 cm

Standard configuration - BIGROTAR H

• Universal hitch 3rd and 4th category
• PTO usable at 1000 rpm; PTO shaft with automatic clutch
• Rear cage roller Ø 800
• Central subsoiler

Standard configuration - BIGROTAR G

• Towing eye attachment
• PTO usable at 1000 rpm; PTO shafts
• Four rear rubber wheels with depth adjustment
• Central subsoiler

Details

• Central gearbox for even power transmission
• Central subsoiler included for deep loosening
• BIGROTAR H: rear cage roller for consolidation
• BIGROTAR G: four rear rubber wheels for depth control
• Hoe tools: 32 elements

Model list Model | Width cm | Maximum working depth cm | No. hoes | Weight Kg
BIGROTAR H 110 | 300 | 110 | 32 | 4650
BIGROTAR G 150 | 300 | 150 | 32 | 6360

Technical specifications

• Product family: BIGROTAR series
• Use: deep mixing and loosening; suitable for poplar plantations, orchards, vineyards and regeneration of soils used for vegetable crops
• Available versions: G (trailed) and H (mounted)
• Working width: 300 cm (both models)
• Maximum working depth: up to 150 cm (series)
• Number of hoes: 32 (both models)
• Weights: H 110 = 4650 kg; G 150 = 6360 kg
• Tractor power range: 200–500 HP (G), 250–500 HP (H)
• PTO: usable at 1000 rpm; PTO shaft with automatic clutch (H)
• Attachment: universal hitch 3rd/4th category (H); towing eye attachment (G)
• Rear equipment: cage roller Ø 800 (H); four rubber rear wheels with depth adjustment (G)
• Central subsoiler included
• Configurations on request: table kit with lights; automatic rear roller retraction; other optional equipment
