Rotary plow HORTA

not specifiedmounted21-shank

Product overview

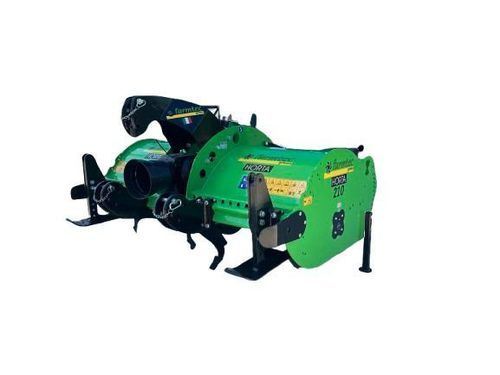

The HORTA rotary cultivator is designed for greenhouse and intensive field work. Suitable for tractors rated 60–200 HP, it adapts to varied soil types and weather conditions. A central gearbox provides efficient power transfer for tillage down to 60 cm. The Farmtec Green hoe system breaks and turns the soil, removes plough pan and improves soil structure to support uniform crops and steady yields.

Details

• Rear rake
• Central gearbox
• Front depth adjustment sleds
• Farmtec Green hoe design
• Central subsoiler

Standard configuration

• Universal hitch – category 2
• PTO usable at 540 / 750 / 1000 rpm
• Rear rake
• Front depth adjustment sleds
• Central subsoiler
• PTO shaft with bolt limiter

Configuration on request

• Rear leveling bonnet
• Hydraulic system on rear bonnet
• Hydraulic system on rear rake
• PTO shaft with automatic clutch
• Bonnet protection plastics
• Hoes with wear‑resistant coating
• Single depth control discs
• Hydraulic system for single depth control discs
• Front balloon wheels for depth adjustment
• Front narrow balloon wheels for depth adjustment
• Table kit with lights

Model list
Model | Width (cm) | Maximum working depth (cm) | No. of hoes | Weight (Kg)
HORTA 170 | 170 | 60 | 12 | 1190
HORTA 190 | 190 | 60 | 16 | 1190
HORTA 210 | 210 | 60 | 16 | 1420
HORTA 250 | 250 | 60 | 20 | 1620
HORTA 300 | 300 | 60 | 24 | 1870
HORTA 360 | 360 | 60 | 24 | 2100

Working depth
Maximum working depth: 60 cm

Technical specifications

• Recommended tractor power: 60–200 HP
• Maximum working depth: 60 cm
• Central gearbox for optimal energy transfer
• Universal hitch: category 2
• PTO speeds supported: 540 / 750 / 1000 rpm
• PTO shaft options: bolt limiter (standard) or automatic clutch (on request)
• Standard equipment: rear rake, front depth adjustment sleds, central subsoiler
• Available options: hydraulic systems (rear bonnet / rear rake / depth discs), bonnet protection plastics, hoes with wear‑resistant coating, balloon wheels, lighting kit
• Available working widths: 170, 190, 210, 250, 300, 360 cm
• Number of hoes by model: 12 (HORTA 170) to 24 (HORTA 300 / 360)
• Weights by model (published): 1190 kg (HORTA 170 / 190), 1420 kg (HORTA 210), 1620 kg (HORTA 250), 1870 kg (HORTA 300), 2100 kg (HORTA 360)
