Rotary plow ROTAR

not specifiedmountedwith hydraulic adjustment

Overview

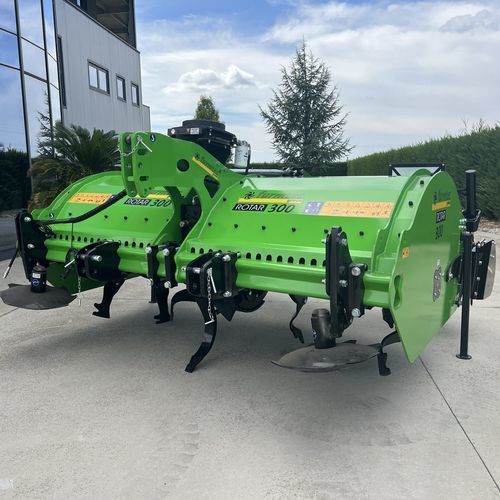

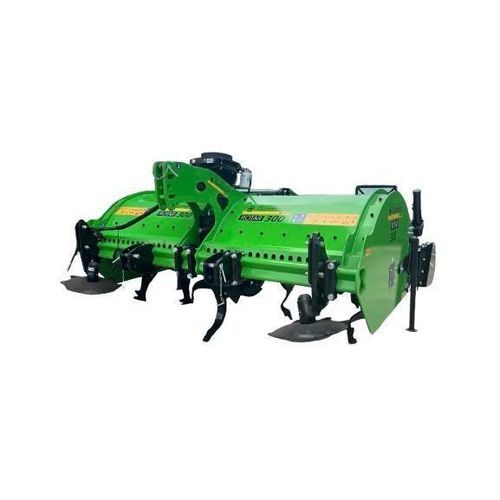

The ROTAR rotary plough is designed for deep mixing and loosening of soil in poplar groves, orchards and vineyards, with a working depth up to 60 cm. It is particularly effective for regenerating soils affected by residue problems, notably in vegetable crops, and enables operation in adverse climatic conditions and on very damp or wet soils where conventional ploughing is impractical. The machine is suitable for tractors from 200 to 400 HP.

Details / main components

• Rear rake
• Central gearbox
• Radiator
• Central subsoiler
• Individual depth control discs
• Hoes in Farmtec Green design

Standard configuration

• Universal 3rd category attachment
• PTO usable at 750/1000 rpm
• Rear rake
• Single depth control discs
• Central subsoiler
• PTO shaft with automatic clutch

Configuration on request

• Additional subsoiler complete with support
• Hydraulic system on rear rake
• Bonnet protection plastics
• Hydraulic system on single depth control discs
• Rotary harrow or tiller attachment kit
• Rear power take-off
• Hoes with wear-resistant material coating
• Plate kit with lights

Model list (table)
Model | Width (cm) | Working depth (cm) | No. hoes | Weight (Kg)
ROTAR 300 | 300 | 60 | 24 | 2720
ROTAR 350 | 350 | 60 | 28 | 3050
ROTAR 400 | 400 | 60 | 32 | 3380

Characteristics / technical specifications

• Working depth: up to 60 cm
• Recommended tractor power: 200–400 HP
• Attachment: universal 3rd category
• PTO: usable at 750/1000 rpm; PTO shaft with automatic clutch
• Standard components: rear rake, single depth control discs, central subsoiler
• Options: additional subsoiler with support; hydraulic systems for rear rake and discs; bonnet protection plastics; rotary harrow/tiller kit; rear PTO; hoes with wear-resistant coating; plate kit with lights
• Available models and main dimensions/weights: ROTAR 300 (300 cm, 24 hoes, 2720 Kg), ROTAR 350 (350 cm, 28 hoes, 3050 Kg), ROTAR 400 (400 cm, 32 hoes, 3380 Kg)
