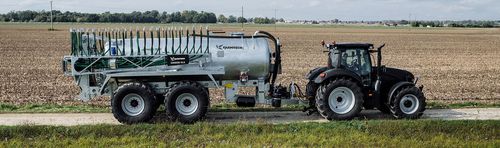

Designed to offer an alternative for farm operators who need extra slurry spreading capacity at peak times, but need to keep an eye on costs.
ULTRACIS series have self-supporting galvanized tanks with baffles for maximum stability. The vehicle axle and drawbar are connected by two sturdy longitudinal reinforcements, which also carry all supply lines (air, oil, electricity) and protect them from mechanical damage. The drawbar height can be adjusted among several levels. By swivelling the drawbar, it can be switched from clevis to hitch coupling as a standard feature. Hydraulic drawbar suspension is available as an option.
Fully galvanized chassis frame, drawbar with height adjustment device (low and high mounting), towing eye ball K80, landing gears (with gear box, double speed, three-stages), road lighting system, wheel chocks
Sturdy robust aggregate with two BPW-axles with 10-stud rims, track 2150 mm, wheelbase 1900 mm, load capacity 20000 kg, FL 4118|4112 brake, steering axle
Fully galvanized barrel body with wall thickness 6 mm, a recess for wide tyres, integrated baffle, connections for suction and discharge lines with quick coupler, slurry shovel with hydraulic actuation, level indicator, dome valve and siphon with sight glass, manhole cover at the back, hose storage brackets left and right, manometer, safety valve secured to 0.5 bar
