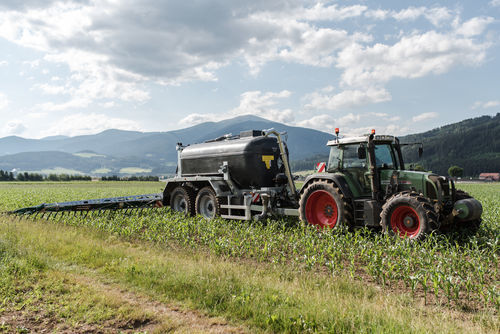

Tandem axle slurry tanker POLYCIS 1600

vacuumpressuretowed

Short description
Polycis 1600 is a 16,000 L slurry tanker designed for flexible application and filling operations in professional agricultural use. The machine can be specified with multiple equipment options — from an automatic docking device and hydraulically height-adjustable drawbar with damping to an integrated trailing-shoe system with a working width up to 15 m. A WANGEN GL-F 4000 progressing cavity pump provides the required filling and application flow and pressure.

Key facts

• Barrel capacity: 16,000 l
• Unladen weight: ca. 5,3 t (approx. 5,300 kg depending on configuration)
• Tractor power: > 163 HP (> 120 kW)
• Chassis: Tandem
• Class: Profi

Pump
WANGEN progressing cavity pump GL-F 4000, flow rate 4,000 l/min; PTO-driven rotor (reinforced version); axle seal with oil reservoir; mechanical seals; double bearing with pin-bearing.

Chassis
Fully galvanized chassis frame; drawbar with low and high mounting and height adjustment; hydraulically height-adjustable drawbar with damping device; towing eye ball K80; landing gears (gearbox, two speeds, three stages); road lighting system; hand brake; wheel chocks; electrical installation complying with (EU) 2015/208 using LED technology.

Axle / Brakes
Sturdy aggregate with two BPW axles on 10-stud rims; track width 2,150 mm; wheelbase 1,900 mm; load capacity 20,000 kg; FL 4112 brake units. Dual-line air brake installation with ALB (country-specific selection).

Barrel body
Tank made of polyester reinforced with glass fiber and gelcoat coating; minimum wall thickness 8 mm; directly mounted to the frame; integrated baffle; quick-coupling vacuum hoses; mixer with pneumatic actuation; integrated pressure line with hydraulic changeover valve; level indicator with automatic filling system; pipe holder.

Technical specifications

• Denomination / Model: Polycis 1600
• Barrel capacity: 16,000 l
• Barrel body dimensions (D x L): 2,050 x 5,050 mm
• Barrel wall thickness: > 8 mm (minimum)
• Suction hose diameter: 6"
• Unloaded weight (depending on configuration): approx. 5,300 kg
• Total dimensions (L x W x H): 7,800 x 2,550 x 3,620 mm
• Power requirements: > 120 kW / 163 HP
• Pump: WANGEN GL-F 4000, 4,000 l/min progressing cavity pump (PTO driven, reinforced)
• Chassis: fully galvanized frame, integrated chassis frame, drawbar height adjustment, towing eye K80, landing gears (gearbox, two speeds, three stages)
• Brakes: FL 4112, dual-line air brake with ALB option
• Barrel features: polyester reinforced with glass fiber and gelcoat, integrated baffle, mixer with pneumatic actuation, quick-coupling vacuum hoses, integrated pressure line with hydraulic changeover valve, level indicator with automatic filling system, pipe holder
• Equipment options: automatic docking device, hydraulically height-adjustable drawbar with damping device, integrated trailing-shoe system (working width up to 15 m) and other options for operational flexibility
