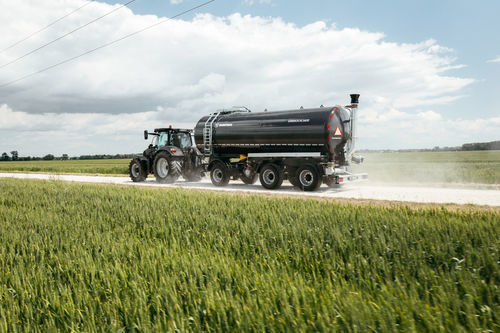

3-axle slurry tanker CARGOCIS series

not specifiedpressuretowed

Overview
Cargocis is a next‑generation slurry transport tanker series designed for professional agricultural users who require efficient, reliable and cost‑effective field logistics. The range covers four volume variants and multiple axle/load configurations to match towing and farm fleet requirements.

Key facts

• Unladen weight: 7,600–8,500 kg (depending on model/configuration)
• Required tractor power: > 120 kW / 163 HP
• Barrel capacity: 20–26 m³ (20,000–26,000 l)

Capacity & efficiency
Available volumes: 20, 22, 24 and 26 m³. Axle load options of 3 t or 4 t allow optimisation of towing capacity and permissible gross weight, which can reach up to 34 t depending on configuration. Intelligent weight distribution increases payload per trip and reduces field transport cycles.

Driving comfort & technology
Designed for stable road and field behaviour when loaded. Standard equipment includes an air‑sprung front axle; air suspension for the remaining axles is available as an option. Design speed up to 60 km/h. Fully painted tank surface provides long‑term corrosion protection.

Pumping and filling technologies
Configurable pumping systems: external filling/emptying, compressor filling systems and a rotary lobe pump. Configurations are selectable to suit filling/emptying points, viscosity and farm handling procedures.

Technical table (models compared)
Models: Cargocis 2000 | Cargocis 2200 | Cargocis 2400 | Cargocis 2600
Barrel capacity [l]: 20000 | 22000 | 24000 | 26000
Barrel body dimensions (D x L) [mm]: 1800 x 6450 | 1800 x 6450 | 1800 x 6450 | 1800 x 6450
Barrel wall thickness [mm]: 6 | 6 | 6 | 6
Suction hose ["]: 6 | 6 | 6 | 6
Unladen weight (depending on config) [kg]: ca. 7600 | ca. 7900 | ca. 8200 | ca. 8500
Total dimensions (L x W x H) [mm]: 9919 x 2427 x 3745 | 9919 x 2427 x 3745 | 9919 x 2427 x 3745 | 9919 x 2427 x 3745
Power requirements [kW / HP]: > 120 / 163 | > 120 / 163 | > 120 / 163 | > 120 / 163

Features (barrel & chassis)
Fully painted barrel with 6 mm wall thickness; integrated chassis frame; electrical installation compliant with (EU) 2015/208 including LED lighting technology.

Technical specifications

• Model / Series: Cargocis (available volumes: 20,000 l / 22,000 l / 24,000 l / 26,000 l)
• Barrel internal diameter x length: 1800 x 6450 mm (all variants)
• Barrel wall thickness: 6 mm
• Barrel finish: fully lacquered painted tank for corrosion protection
• Suction hose diameter: 6"
• Unladen weight (approx., depends on configuration): 7,600 kg (Cargocis 2000), 7,900 kg (2200), 8,200 kg (2400), 8,500 kg (2600)
• Total dimensions (L x W x H): 9,919 x 2,427 x 3,745 mm (typical)
• Required tractor power: > 120 kW / 163 HP
• Design speed: up to 60 km/h
• Axle load options: 3 t or 4 t (to optimise towing/gross weight)
• Maximum permissible gross weight: up to 34 t (depending on configuration)
• Chassis: integrated frame; standard air‑sprung front axle; optional air suspension on remaining axles
• Pumping / filling options: external filling/emptying, compressor systems, rotary lobe pump
• Intended users: professional agricultural operators requiring efficient slurry logistics
• Electrical system: EU (post‑2015) installation with LED technology
