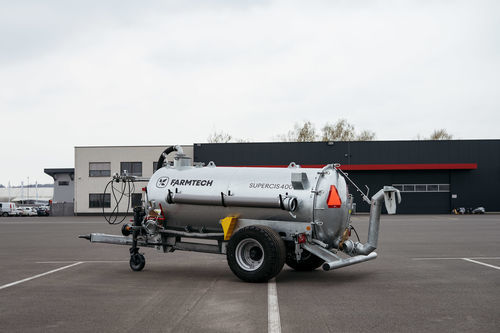

Single-axle slurry tanker SUPERCIS 400

towed

Product overview
The Supercis 400 is a compact slurry tanker designed for pumping, transporting and applying slurry and other liquid fertilizers. Its compact dimensions allow easy handling and compatibility with medium‑power tractors while maintaining practical capacity and field productivity.

Construction & durability
The tank body is fully galvanised steel providing corrosion protection. The integrated galvanised chassis includes baffle plates to limit liquid movement and ensure stable road and field behaviour. An adjustable drawbar (optionally with hydraulic suspension) adapts the unit to different tractors and operating conditions. Electrical installation meets (EU) 2015/208 and uses LED lighting.

Precision & versatility
Supercis supports multiple distribution methods for targeted and low‑emission slurry application. Available systems include the Möscha distributor, trailing hose and trailing shoe systems, and a spreader plate, enabling adaptation to different crops, soil conditions and environmental requirements.

Key facts

• Unladen weight: approx. 1.700 kg
• Required tractor power: > 63 HP (> 47 kW)
• Barrel capacity: 4,000 l

Technical data (selected)
Barrel capacity [l]: 4000
Barrel body dimensions (D x L) [mm]: 1250 x 3475
Barrel wall thickness [mm]: 5
Suction hose [“]: 6
Unladen weight (depend on config) [kg]: ca. 1700
Total dimensions (L x W x H) [mm]: 5540 x 2150 x 2150
Power requirements [kW/HP]: > 47 / 63

Barrel / chassis features

• Fully galvanised tank body, wall thickness 5 mm
• Galvanised chassis with integrated baffle plates
• Integrated chassis frame
• Adjustable drawbar, optional hydraulic suspension
• Electrical installation compliant with (EU) 2015/208, LED lighting

Distribution & application options

• Möscha distributor
• Low‑emission trailing hose systems
• Trailing shoe systems
• Slurry spreader plate

Caractéristiques / spécifications techniques

• Model name: Supercis 400
• Barrel capacity: 4000 l
• Barrel body dimensions (D x L): 1250 x 3475 mm
• Barrel wall thickness: 5 mm (fully galvanised)
• Suction hose: 6"
• Unladen weight (depending on configuration): approx. 1,700 kg (1,7 t)
• Total dimensions (L x W x H): 5540 x 2150 x 2150 mm
• Power requirement: > 47 kW / 63 HP
• Chassis: integrated galvanised frame with baffle plates
• Electrical installation: compliant with (EU) 2015/208, LED technology
• Available distribution systems: Möscha distributor, trailing hose, trailing shoe, spreader plate
