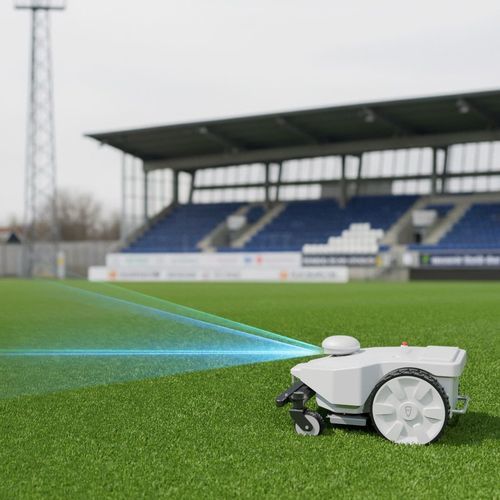

Robotized lawn mower FRX

electricbattery-poweredfor sloped terrain

Overview
FJD FRX is a professional robotic lawn mower designed for sports fields, golf courses and large turf areas. It provides precise autonomous mowing with RTK + vision positioning, multi-zone management, remote app control and flexible charging options including fast battery swapping and automatic charging for fully unmanned operation.

Key Features

• RTK & vision precision navigation for stable positioning, even under tree shade.
• Multi-zone management enabling simultaneous field scheduling and automatic field-to-field operation.
• Remote app control with image feed for remote monitoring and control.
• Anti-theft security system: PIN protection, GPS tracking and alarm on lift/move/out-of-geofence events.
• All-day autonomous mowing with options for fast battery swap or automatic charging for 24/7 operation.
• Nighttime quiet operation allowing silent mowing to maximize daytime field availability.
• Dual protection safety: vision fusion plus physical bumper to avoid obstacles.
• Front suspension chassis and cutting disc auto-lifting for stable mowing on uneven terrain and real-time cutting height adjustment via remote control.
• IPX5 waterproof design for reliable operation in rain and easy cleaning.
• Safety and usability accessories such as grass press plate and blade guard to reduce drag and minimize hand-injury risk during maintenance.

System Integration & Platforms
Works with N10 CORS, V4e mapping and GreenMaster platform for precise mapping, centralized task management and streamlined digital operations. V4e handheld marker enables fast mapping without the mower on-site.

Technical specifications

• Model / Denomination: FJD FRX
• Battery: 1 kWh (standard)
• Max mowing area per charge: 8,000 m²
• Coverage (fast battery swapping mode): 24h = 32,000 m² ; 72h = 96,000 m² (calculated based on continuous operation; actual coverage depends on usage)
• Coverage (automatic charging mode): 24h = 20,000 m² ; 72h = 60,000 m²
• Max climbing ability / Max mowing slope: 30°
• Cutting height: 10–100 mm (0.4–4 in)
• Cutting width: 520 mm (20.5 in)
• Cutting system: 2 cutting discs (pivoting razor blades per disc, 6 blades per disc typical)
• Travel speed: 0–4 km/h
• Battery performance (runtime): ~320 min
• Charging time: ~240 min
• Charging modes: manual & automatic; supports fast battery swapping (portable swap) for continuous operation
• Weight: 83.7 kg
• Dimensions: 1278 × 782 × 739.9 mm (50.3 × 30.8 × 29.1 in)
• Boundary type: virtual wire
• Mowing pattern: customized angle mowing
• Positioning & Navigation: RTK & vision; supports NTRIP and integration with FJD base station & CORS station
• Connectivity: 4G and wireless connectivity; OTA software updates
• IP rating: IPX5
• Factory-configurable items: complete mower, optional portable charger, optional auto-charging station, standard 1 kWh battery; some accessories optional (handheld point marker, independent anti-theft module, etc.)
