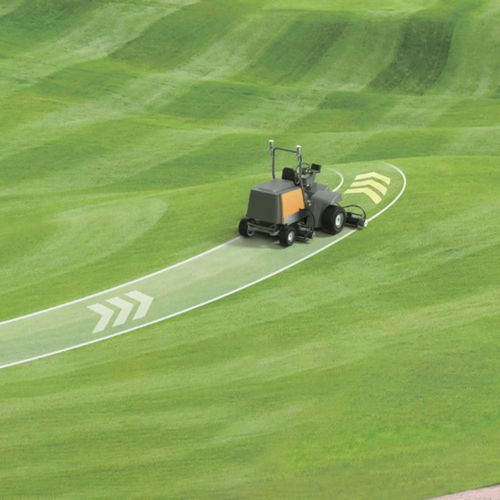

Robotized lawn mower MS100electricfor sloped terrain
Add to favorites
Compare this product
Characteristics
- Type
- robotized
- Motor type
- electric
- Other characteristic
- for sloped terrain
Description
Product overview
FJD MS100 Mower Kit provides high-precision guidance for mainstream 3- and 5-link golf mowers, enabling straight, curved and circular mowing patterns. The system reduces overlaps and simplifies steering to improve mowing efficiency and repeatability on fairways and sports turf.
Key features
Control Terminal
Dimension (L × W × H): 300 × 190 × 43 mm
System: Android
Network Mode: 4G/3G/2G
Display: 10.1 in, 1280 × 800 pixels
Waterproof Level: IP65
Power Interface: 10V–30V
Interface: Radar ×1, 4G ×1, GNSS ×2, Base Station ×1
Electric Steering Wheel
Size: 370 × 370 × 123 mm
Waterproof Level: IP66
Power Supply: 12V / 24V DC
GNSS Antenna
Size: 370 × 370 × 123 mm
Supported Signals: GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3
IMU
Accelerometer: 0.5 mg
Gyro (gravity sensor): 0.1°/s
Electronic Compass: 0.2°
Power Interface: 5V
Angle Sensor
Operating Temperature Range: -40° C to 85° C
Waterproof Level: IP67
Technical specifications
FJD MS100 Mower Kit provides high-precision guidance for mainstream 3- and 5-link golf mowers, enabling straight, curved and circular mowing patterns. The system reduces overlaps and simplifies steering to improve mowing efficiency and repeatability on fairways and sports turf.
Key features
- Centimeter-level GNSS positioning for ultra-precise guidance
- Multiple mowing modes: Straight Lines, Curves, Pivots (circular)
- Smart terrain adaptation to compensate for uneven surfaces and ground contours
- Reduced operator workload — kit manages steering while operator controls speed and implements
- Create, save and reuse guidance line profiles for repeatable operations
- Typical applications: golf course fairways, sports fields and turf maintenance
Control Terminal
Dimension (L × W × H): 300 × 190 × 43 mm
System: Android
Network Mode: 4G/3G/2G
Display: 10.1 in, 1280 × 800 pixels
Waterproof Level: IP65
Power Interface: 10V–30V
Interface: Radar ×1, 4G ×1, GNSS ×2, Base Station ×1
Electric Steering Wheel
Size: 370 × 370 × 123 mm
Waterproof Level: IP66
Power Supply: 12V / 24V DC
GNSS Antenna
Size: 370 × 370 × 123 mm
Supported Signals: GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3
IMU
Accelerometer: 0.5 mg
Gyro (gravity sensor): 0.1°/s
Electronic Compass: 0.2°
Power Interface: 5V
Angle Sensor
Operating Temperature Range: -40° C to 85° C
Waterproof Level: IP67
Technical specifications
- Model: FJD MS100
- Brand: FJDYNAMICS
- Control Terminal dimensions: 300 × 190 × 43 mm
- Control Terminal display: 10.1", 1280 × 800
- Control Terminal waterproof rating: IP65
- Electric Steering Wheel size: 370 × 370 × 123 mm
- Electric Steering Wheel waterproof rating: IP66
- Power supplies: Control Terminal 10V–30V; Steering Wheel 12V/24V DC; IMU 5V
- GNSS support: GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3
- Interfaces: Radar ×1, 4G ×1, GNSS ×2, Base Station ×1
- IMU performance: Accelerometer 0.5 mg; Gyro 0.1°/s; Electronic compass 0.2°
- Operating temperature: -40° C to 85° C
