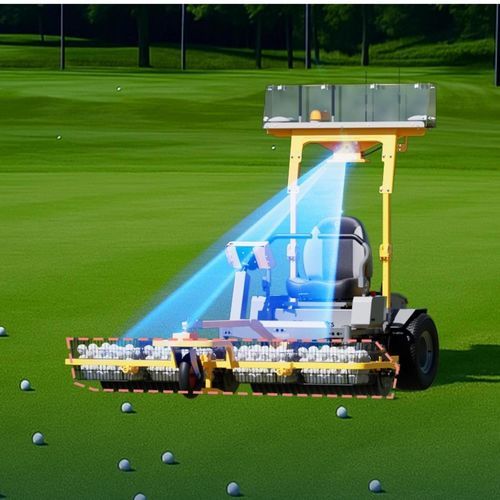

Robotized lawn mower FJD Z42P

electricbattery-poweredcollecting

Overview
FJD Z42P Combo is an autonomous electric zero-turn mower equipped with RTK positioning for centimeter-level accuracy. It offers multiple operating modes, modular electric chassis, and an optional 2-in-1 ball-picker configuration for driving-range operations. Cloud mapping, automatic full-basket detection and fleet/hybrid options enable extended, coordinated turf maintenance.

Key Features

• RTK positioning delivering centimeter-level accuracy and improved signal reliability under trees and near buildings.
• 2-in-1 configuration: mowing plus optional ball picker with automatic full-basket detection.
• Flexible operating modes: Autonomous, Remote Control, Manual (assisted driving).
• Intelligent object avoidance and real-time monitoring for safe unattended operation.
• Smart path planning with cloud mapping and instant route sync to units.
• Modular all-electric chassis with front/rear mounting options and quick battery swaps.
• One-touch electric deck adjustment for simplified maintenance and recovery.
• Built-in operator safety features: weight-sensing seat, foot brake, emergency stop.
• Fleet management and hybrid configurations to extend coverage and reduce operational stops.
• Energy-efficient route-based unmanned operation to lower energy and labor costs.

Operation Modes

• Autonomous Mode: Fusion technology maintains smooth operation where GNSS signals degrade (under trees or beside tall structures).
• Remote Control Mode: Tablet-based monitoring and remote control to reduce operator exposure to heat, noise and dust.
• Manual Mode: Assisted steering and controls for easier manned operation when required.

Applications

• Professional golf driving ranges (mowing and ball collection).
• Golf courses, sports fields and turf farms requiring precise, repeatable mowing.
• Large-area turf maintenance with coordinated fleet operations and extended-range configurations.

Cloud & Fleet
Cloud mapping enables creation and refinement of task maps, instant route synchronization with units, and real-time control and monitoring from the app. Fleet management supports coordination of multiple units for faster coverage and higher operational efficiency.

Additional Product Notes

• Optional ball picker accessory supports high-capacity picking (up to 1800 balls) and automatic full-basket recognition.
• Optional gasoline engine and fast-charging configurations are available to extend operating flexibility.

Specifications

• Working area (per full charge): 24,281 m² (6 acres)
• Max climbing ability: ≤ 20°
• Suggested operating gradient: ≤ 10°
• Weight (complete unit): 335 ± 10 kg (738 ± 22 lb)
• Dimensions (complete unit): 1635 × 1305 × 2273 mm (64.4 × 51.4 × 89.5 in)
• Cutting height: 30–127 mm (1.2–5.0 in)
• Cutting width: 1067 mm (42 in)
• Battery capacity: 6 kWh
• Battery performance: 5 h
• Charging time: Standard 6 h; Fast (optional) 4 h
• Ball picker (optional) weight: 120 kg (265 lbs)
• Ball picker picking capacity: 1800 balls
• Ball picker width (with baskets): 2199 mm
• Ball picker number of baskets: 4
• Ball picker battery life: 6 h
• Ball picker: Automatic full-basket recognition supported
• Gasoline engine (optional) gasoline rating: 92#
• Gasoline capacity: 6 L
• Gasoline engine weight (@ full fuel): 40 kg
• Gasoline engine noise: ≤ 95 dB
• Gasoline engine dimensions: 275 × 180 × 40 mm
• Gasoline full-tank max power capacity: 7 kWh
• Power output (charging): AC 220V
