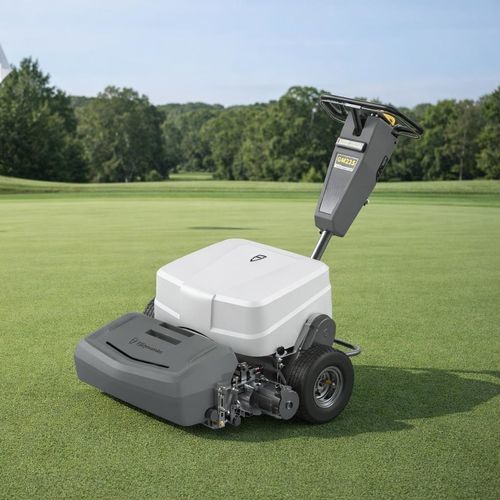

Push lawn-mower GM22S

electricbattery-poweredcollecting

Overview
FJD GM22S is a pure electric-drive greens mower engineered for low-noise, low-vibration turf maintenance with no oil emissions and lower operating costs than petrol machines. It integrates a 2 kWh battery and an onboard touchscreen for control and parameter adjustment. The product literature cites coverage up to 7,000 m² per charge while technical specifications list a maximum mowing area per full charge of 5,574 m².

Key Features

• Touchscreen Control: set speed, mowing frequency and blade sharpening directly on the machine.
• Dual Walking Mode: operate via buttons or lever and toggle between two preset walking speeds.
• Floating Cutting Heads: four-way floating heads follow turf contours for an even finish.
• Precision Float Angles: 8° front-to-rear and 4° left-to-right float to reduce scalping.
• Smart Parameter Settings: automatic recommendations for blade speed and mowing frequency based on cutting height.
• One-Tap Reverse Sharpening: onboard blade sharpening without separate tools.
• Minimal Maintenance: electric drive reduces routine engine service and consumables.
• Energy-efficient and Low Noise: electric operation with reduced vibration and running costs compared with gas units.

Battery & Run Time
The mower is fitted with a 2 kWh battery. Product information references coverage up to 7,000 m² per charge while the technical SPECS specify a maximum mowing area per full charge of 5,574 m²; operational coverage depends on cut height, terrain and operating settings.

Application Scenarios

• Sports fields
• Golf courses
• Private estates and grounds maintenance

Hassle-free Maintenance & Settings

• Smart parameter settings provide automatic blade speed and mowing frequency recommendations.
• Onboard reverse blade sharpening reduces preparation time and extends blade life.
• Electric drive lowers routine service requirements and consumable use.

Technical specifications

• Max mowing area per full charge: 5,574 m² (product page also references up to 7,000 m² per charge with 2 kWh battery).
• Grass catcher capacity: 20 L.
• Weight (with battery): 115 kg.
• Overall size (highest lever): L1200 × W908 × H1200 mm.
• Cutting system — Cutting width: 3000 m² (0.75 acre).
• Number of blades: 8 / 11 / 14 (available configurations).
• Cutting height options: 2–20 mm; 3–25 mm; 5–25 mm.
• Walking speed: 0–7 km/h.
• Wheel size: 11 inch.
• Voltage: 48 V.
• Battery capacity: 2 kWh.
• Horsepower: 8 HP.
• Screen size & resolution: 5 inch (1280 × 720).
• OTA (over-the-air updates): Supported.
• WiFi: Supported.
