Robotized lawn mower Titan

electricbattery-poweredfor sloped terrain

Overview

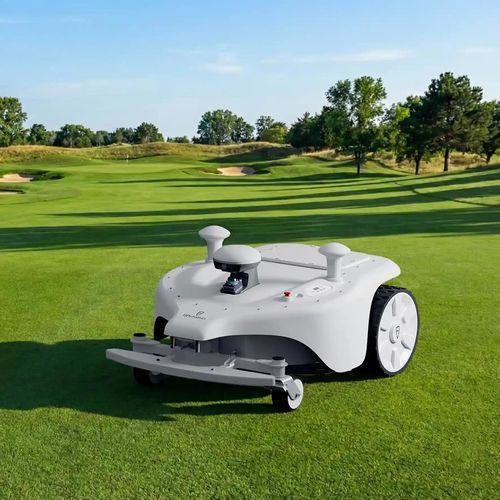

The FJD Titan is a high-capacity autonomous robotic mower engineered for large turf areas such as golf courses, sports fields and public green spaces. It combines precise positioning, multi-field management and fleet-level coordination to maintain consistent turf quality with minimal human intervention.

Key Benefits

• Adjustable cutting height from 10–100 mm via mobile app to suit turf type and seasonal needs.
• High productivity with a 730 mm cutting width, up to 36,000 ㎡ per day in automatic charging mode (24 h).
• Quiet night operation enabling mowing outside peak hours to preserve daytime availability.
• Centralized control through one mobile app for deployment, real-time monitoring and zone customization.
• Multi-field automated transitions for continuous operation across separate task areas.
• Integration with N10 CORS, P2 Scanner and GreenMaster Platform for accurate mapping, RTK corrections and centralized fleet/task management.

Navigation & Guidance
Three-layer guidance system combining dual-RTK GNSS antennas, LiDAR and computer vision to deliver stable positioning and reliable obstacle avoidance.

Terrain & Drive
Terrain-capable traction with rotating front axle and dual-wheel drive, designed to handle slopes up to 25° (46%) and complex ground conditions.

Power & Efficiency
Smart energy management with precise auto-charging to reduce downtime; supports manual and automatic charging plus fast battery swapping for extended continuous operation.

Application Scenarios

• Golf courses
• Sports fields
• Public gardens and large urban green spaces

Technical specifications

• Mowing capacity (fast battery swapping mode): 72 h maximum coverage 126,000 ㎡ (31 acres); 24 h maximum coverage 42,000 ㎡ (10.4 acres).
• Mowing capacity (automatic charging mode): 72 h maximum coverage 108,000 ㎡ (26.7 acres); 24 h maximum coverage 36,000 ㎡ (9 acres).
• Max mowing area per charge: 18,000 ㎡ (4.5 acres).
• Max climbing ability: 25° / 46%.
• Front suspension chassis: standard.
• Boundary type: Virtual wire.
• Cutting mode: Customized angle mowing.
• Weight: 122 kg / 287 lbs.
• Dimensions: 1400 × 1050 × 650 mm (55.1 × 41.3 × 25.6 in.).
• Software update: OTA.
• Connectivity: 4G, Wireless Connectivity.
• Operating temperature: 0–55°C / 32–131°F.
• IP rating: IP64.
• Cutting height: 10–100 mm / 0.4–4 in.
• Cutting width: 730 mm (260 mm each) / 28.7 in. (10.2 in. each).
• Travel speed: 0–3.6 km/h.
• Cutting discs: 3 cutting discs (pivoting razor blades per disc × 6).
• Charging mode: Manual & automatic.
• Fast battery swapping: standard.
• Battery life: 480 min.
• Charging time: 120 min.
• Positioning: RTK + LiDAR + Vision; supports NTRIP and FJD base station & CORS station.
• Factory configuration (standard / optional): Complete mower (Standard); Auto-charging station (Standard); 2 kWh battery (Standard); High-strength cutting blade (Standard); V4e handheld marker (Standard); FJD base station (Standard); GPS module (Optional); Independent anti-theft module (Optional).
