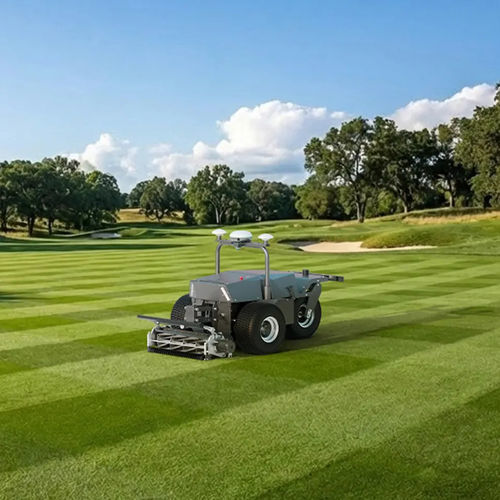

Robotized lawn mower RCM01

electricbattery-poweredfor sloped terrain

Product Overview
The FJD RCM01 Robotic Cylinder Mower is an autonomous turf maintenance machine for golf courses and sports fields, combining RTK positioning and LiDAR navigation with a precision reel cutting system for scissor-like cuts and professional striping.

Key Benefits

• Reduce turf damage with a reel cutter that minimizes leaf tearing.
• Automate repetitive mowing tasks to reallocate operator time and increase fleet utilization.
• Produce consistent, high-contrast striping and controlled turf patterns.

Precision Cutting
The reel system provides clean, scissor-style cuts across a 686 mm cutting width, adjustable cutting height 7–44 mm, and variable reel speed to match turf conditions and cutting requirements.

Professional-Grade Striping
Create defined stripes with precision roller blades; striping width and direction are configurable to match course aesthetics and maintenance standards.

Shape the Turf, Define the Look
Adjust mowing angles to change stripe direction and implement custom turf patterns for fairways, greens surrounds and sports fields.

High Efficiency & Autonomy
The RCM01 supports up to 30,000 m² coverage in 24 hours (up to 90,000 m² in 72 hours) with fast battery swapping and up to 20,000 m² per charge. Remote fleet management reduces on-site supervision needs.

Operational Highlights
Quiet operation suitable for nighttime mowing; multi-zone tasking allows automatic transition between areas and centralized scheduling via the management platform.

Integration & Mapping
Seamlessly integrates with N10 CORS, P2 Scanner and the GreenMaster platform for RTK correction, rapid mapping, reusable digital maps and centralized task, schedule and data management.

Navigation & Safety
RTK + LiDAR positioning delivers high-precision navigation with limited signal loss under obstructions. Built-in front/rear bumpers and LiDAR obstacle avoidance ensure secure autonomous operation.

Technical specifications

• Mowing Capacity: 24-hour max coverage 30,000㎡ (7.4 acres); 72-hour max coverage 90,000㎡ (22.2 acres). Max mowing area per hour 1,800㎡ (0.4 acres). Max mowing area per charge 20,000㎡ (5 acres).
• Slope & Climb: Max climbing ability 20°. Max mowing slope 15°.
• Boundary & Cutting Mode: Boundary Type: Virtual Wire. Cutting Mode: Customized Angle Mowing.
• Complete Unit: Weight 365 kg (804.69 lb). Dimensions 1905 × 1077 × 1077 mm (75 × 42.4 × 42.4 in). Software update: OTA. Connectivity: 4G, Wireless Connectivity. Operating temperature: -20℃ to 45℃ (-4°F to 113°F). IP rating: IPX4.
• Cutting System: Cutting height 7–44 mm (0.3–1.7 in). Cutting width 686 mm (27 in). Reel unit weight 65 kg (143.3 lb). Reel unit dimensions 1000 × 370 × 350 mm (39.4 × 14.6 × 13.8 in). Reel speed 300–2200 RPM. Number of blades: 1. Reel diameter: 177 mm (7 in). Reel width: 685 mm (27 in).
• Battery & Charging: Fast battery swapping. Battery capacity 8 kWh. Battery life 10 h. Charging time 5 h. Rated operating voltage 48 V.
• Positioning & Navigation: RTK & LiDAR. NTRIP supported. Compatible with FJD Base Station & CORS station.
• Factory Configuration (standard/optional): Complete mower (standard). Portable charger (standard). Tablet (standard). Bedknife ×2 (standard). V4e Handheld Point Marker (standard). P2 Scanner (optional). FJD Base Station (optional).
