Drip irrigation pipe 351595

polyethylenePEwith drip emitter

CEODRIP DRIP IRRIGATION PIPES

Product overview

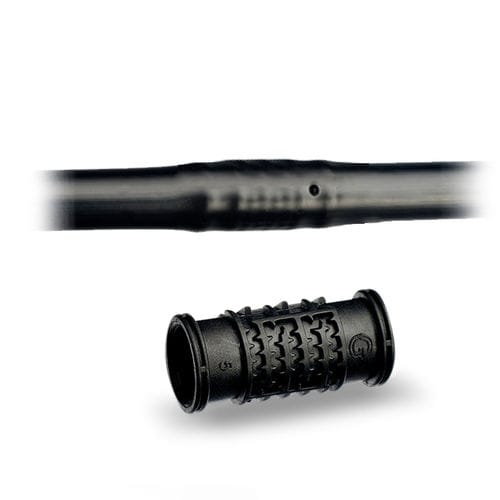

Integrated turbulent dripper. CEODRIP is a short turbulent integrated dripper with high resistance to obstruction that provides a uniform flow rate. Developed by GESTIRIEGO with over 25 years of product experience. Supplied as a coil (Ø20 — 300 m).

Characteristics / Benefits

• Quality and uniformity: dripper integrated into the pipe, designed and manufactured by GESTIRIEGO; material and production control ensure high irrigation uniformity.
• Durability: made of low-density polyethylene (LDPE) with UV protection for extended field life; resistant to fertilizers and agricultural chemicals.
• Anti-obstruction: short labyrinth dripper design reduces pressure loss, stabilizes flow and minimizes clogging risk.

Specifications (summary)

• Flow rates for Ø20 mm: 2.2 l/h and 3.8 l/h.
• Coil length Ø20: 300 m (Ø16 — 400 m available in the range).
• Options: can be supplied inserted into brown or white pipe for gardening applications.

Applications

• Intensive crop irrigation, tree crops and greenhouse irrigation.
• Suitable for vegetables such as lettuce, broccoli, artichoke and similar crops.
• Garden and landscape irrigation.

Technical information (table)
DISTANCE (m) | CODES
0.20 | 351595, 351614
0.25 | 351596, 351618, 351622
0.30 | 351597, 351622, 351626
0.33 | 351598, 351626, 351630
0.40 | 351599, 351630, 351634
0.50 | 351600, 351634
0.60 | 351601, 351638
0.75 | 351602, 351642
1.00 | 351603, 351646
1.25 | 351604, 351650
1.50 | 351605, 351654
2.00 | 351606, 351659
2.50 | 351607, 351665

Technical characteristics / specifications

• Product family / model: CEODRIP (integrated turbulent dripper).
• Pipe diameter shown on this page: Ø20 mm; wall thickness: 1.2 mm.
• Available flow rates Ø20: 2.2 l/h and 3.8 l/h.
• Coil length Ø20: 300 m (other lengths available in the product line).
• Material: low-density polyethylene (LDPE) with UV protection.
• Design: integrated short turbulent dripper with anti-obstruction labyrinth.
• Applications: intensive crops, tree growing, greenhouses, gardening.
