Drip irrigation pipe OPENDRIP

polyethylenewith drip emittercylindrical

Product overview

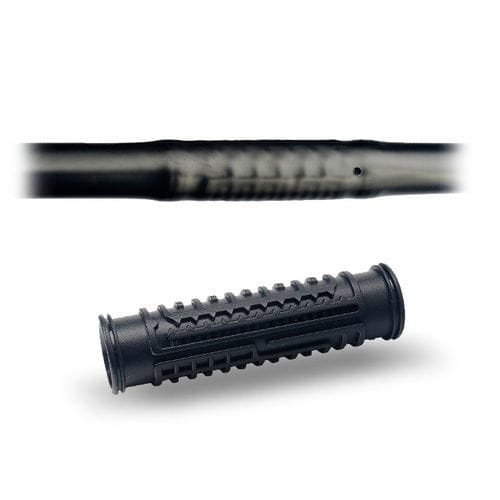

Opendrip drip irrigation pipe with an integrated turbulent cylindrical dripper designed for high resistance to obstruction. The emitter features a long labyrinth and wide passages to ensure uniform flow and excellent clogging resistance. Technology proven for over 25 years and developed by Gestiriego's R+D+i team to minimise blockages caused by sedimentation of particles, chemical precipitates and organic residues commonly found in ecological cropping systems.

Technical data (table)
Product: Opendrip Ø16 / Wall 1 mm
Flow (D16): 2.2 l/h
Roll length: 400 m at Ø16 (other lengths available)

• 0.20 m — 351495
• 0.25 m — 351498
• 0.30 m — 351501
• 0.33 m — 351504
• 0.40 m — 351507
• 0.50 m — 351510
• 0.60 m — 351513
• 0.75 m — 351516
• 1.00 m — 351519
• 1.25 m — 351522
• 1.50 m — 351525
• 2.00 m — 351529
• 2.50 m — 351534

OPENDRIP CHARACTERISTICS

• Anti-obstruction: large pre-filter surface prevents solids entering the labyrinth; labyrinth passages sized so particles that pass do not cause clogging.
• Raised twin pre-filter: fed by faster central water flow to keep the filter surface clean and avoid sedimentation when the system stops; twin design ensures one filter remains elevated.
• Uniformity in flow rate: long labyrinth reduces flow variation with pressure changes, delivering a consistent flow.
• High durability: dripper integrated into the pipe for strong resistance to UV and temperature changes; manufactured in high-quality polyethylene resistant to common chemicals, fertilisers, impacts and pressures.

OPENDRIP BENEFITS

• Greater labyrinth volume than average drippers in its class — prevents blockages and allows particles to pass.
• Larger filter area in its class — higher filtration, fewer blockages and improved field performance.

OPENDRIP APPLICATIONS

• Mineral leaching in mining.
• Irrigation of intensive crops, tree crops and greenhouse systems.
• Organic crops and ecological systems.
• Crops such as lettuce, broccoli, artichoke.
• Gardening and landscaping applications.

Technical specifications

• Denomination: Opendrip
• Nominal diameter: 16 mm
• Wall thickness: 1 mm
• Emitter type: integrated turbulent cylindrical dripper with long labyrinth and wide passage
• Standard flow rate (D16): 2.2 l/h
• Standard roll length: 400 m at Ø16 (other lengths on request)
• Material: high-quality polyethylene, UV and chemical resistant
• Anti-obstruction features: large pre-filter area; raised twin pre-filter; wide labyrinth passages
• Main applications: intensive crops, tree crops, greenhouse irrigation, organic crops, gardening, mineral leaching in mining
