Drip irrigation pipe CEODRIP ®

polyethylenewith drip emittercylindrical

CEODRIP DRIP IRRIGATION PIPES

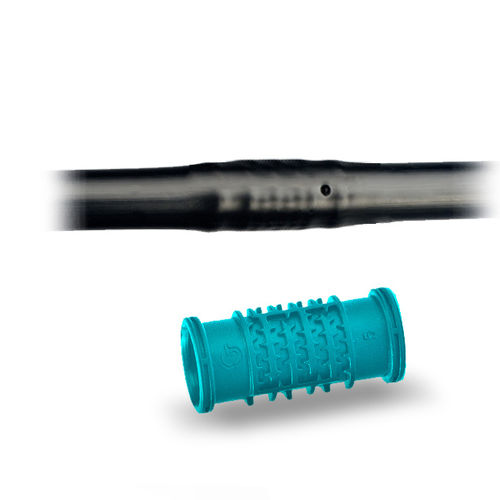

Compact cylindrical turbulent integrated dripper built into Ø16 pipe. CEODRIP delivers uniform flow with high resistance to clogging, manufactured by GESTIRIEGO on a product line with over 25 years of field experience.

Technical data (flows and product codes)
Flow rates for Ø16 mm: 2.0 l/h and 3.8 l/h.
Distance (m) - Flow 2.0 l/h code - Flow 3.8 l/h code
0.20 - 369488 - 369474
0.25 - 369487 - 369473
0.30 - 369486 - 369472
0.33 - 369485 - 369471
0.40 - 369484 - 369470
0.50 - 369483 - 369469
0.60 - 369482 - 369468
0.75 - 369481 - 369467
1.00 - 369480 - 369466
1.25 - 369479 - 369465
1.50 - 369478 - 369464
2.00 - 369476 - 369462
2.50 - 369475 - 369461

CEODRIP CHARACTERISTICS/BENEFITS

• Quality and uniformity: integrated dripper manufactured and designed by GESTIRIEGO to ensure consistent irrigation distribution.
• Durability: produced in low density polyethylene (LDPE) with UV stabiliser for long service life under agricultural conditions and resistance to fertilizers and agrochemicals.
• Anti-clogging: short turbulent labyrinth design reduces blockage risk and maintains a uniform flow.

CEODRIP SPECIFICATIONS

• Ø16 mm: flow rates 2.0 l/h and 3.8 l/h.
• Ø20 mm: flow rates 2.2 l/h and 3.8 l/h.
• Coil lengths: standard 400 m for Ø16 and 300 m for Ø20 (other lengths available on request).
• Also supplied inserted into brown or white pipe for gardening applications.

CEODRIP APPLICATIONS

• Intensive field crops, tree crops and greenhouse irrigation systems.
• Suitable for horticultural crops such as lettuce, broccoli, artichoke, etc.
• Garden and landscaping installations (white/brown pipe options).

Technical specifications

• Series name: CEODRIP (integrated turbulent dripper).
• Material: low density polyethylene (LDPE) with UV protection.
• Integrated short turbulent dripper with internal labyrinth to prevent clogging and ensure uniform flow.
• Standard flows: Ø16 = 2.0 l/h and 3.8 l/h; Ø20 = 2.2 l/h and 3.8 l/h.
• Standard coil lengths: Ø16 = 400 m; Ø20 = 300 m — other lengths on request.
• Available in brown or white pipe for gardening use.
• Product codes by distance and flow are listed in the technical data section above.
