Drip irrigation pipe 351782

polyethylenewith drip emittercylindrical

Product

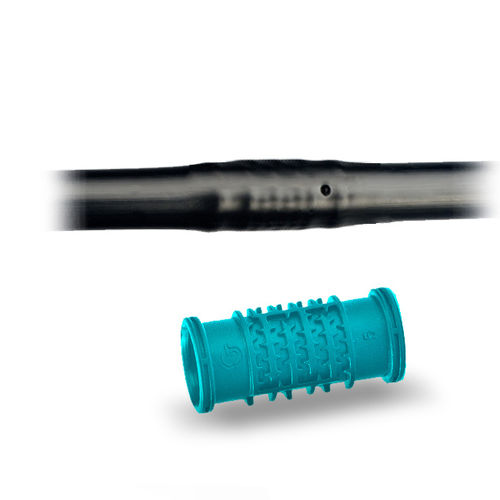

CEODRIP drip irrigation pipe with integrated turbulent cylindrical dripper. Manufactured to provide uniform flow and long service life in agricultural environments. Dripper design reduces clogging and is compatible with common fertilizers and agrochemicals.

CEODRIP CHARACTERISTICS / BENEFITS

• Uniformity: integrated dripper design by GESTIRIEGO ensures consistent emitter spacing and stable flow rates.
• Durability: produced in low density polyethylene (LDPE) with UV stabilization for long-term outdoor use.
• Anti-clogging: long labyrinth in the dripper creates pressure loss that equalizes flow and reduces fouling.

CEODRIP SPECIFICATIONS

• Available diameters and wall: Ø16 mm (wall 1 mm) and Ø20 mm variants.
• Flow rates: Ø16 → 2.0 l/h and 3.8 l/h; Ø20 → 2.2 l/h and 3.8 l/h.
• Coil lengths: Ø16 → 400 m; Ø20 → 300 m. Other lengths on request.
• Garden option: can be supplied with brown or white outer tube insertion for landscaping/gardening use.

CEODRIP APPLICATIONS

• Irrigation of intensive field crops, orchards and greenhouse cultivation.
• Suitable for vegetables such as lettuce, broccoli, artichoke and similar crops.
• Also used in landscaping and gardening installations.

Technical data table (models / codes)
DISTANCE (m) | CODE (flow 2 l/h) | CODE (flow 3.8 l/h)
0,20 | 351782 | 351839
0,25 | 351785 | 351842
0,30 | 351789 | 351846
0,33 | 351793 | 351850
0,40 | 351797 | 351854
0,50 | 351801 | 351858
0,60 | 351805 | 351862
0,75 | 351808 | 351865
1,00 | 351811 | 351868
1,25 | 351814 | 351871
1,50 | 351817 | 351874
2,00 | 351820 | 351877
2,50 | 351823 | 351880

Characteristics / technical specifications

• Product family / model: CEODRIP (integrated turbulent dripper).
• Material: Low density polyethylene (LDPE) with UV protection.
• Dripper type: Turbulent cylindrical integrated dripper with long labyrinth to prevent clogging.
• Diameters: Ø16 mm (wall 1 mm) and Ø20 mm variants.
• Flow rates: Ø16 → 2.0 l/h and 3.8 l/h; Ø20 → 2.2 l/h and 3.8 l/h.
• Coil lengths: Ø16 → 400 m; Ø20 → 300 m (other lengths available on request).
• Colour options for gardening: brown and white insertion options.
• Compatibility: resistant to fertilizers and common agricultural chemicals; designed for long service life in harsh field conditions.
