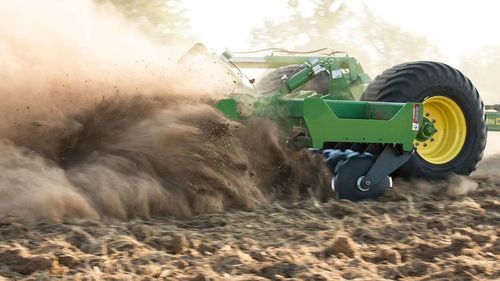

Towed disc harrow 2680H

with hydraulic adjustment3-point hitchdepth control

Overview

• Cover more acres at 10–14 mph (16–22.5 km/h)
• Mix and bury residue for faster breakdown
• Individually mounted blades
• Provides a consistent field finish in spring or fall
• Now compatible with TruSet™ technology

Wide range of working widths available to match acreage and power requirements
The 2680H High-Performance Disk gives operators the ability to cover acres quickly, increasing productivity. This two-season tool can operate up to 22.5 km/h (14 mph) in the field. This tool is available in multiple configurations from 2.5 m to 3.6 m (8 ft, 4 in. to 11 ft, 8 in.). The 2680H requires 34.25 kW/m (14 hp/ft), but in certain hilly, soft, or wet conditions it may require an additional 25 percent engine horsepower to maintain operating speeds at preferred working depth.

Integral three-point rigid models — example productivity table
Working width | Productivity per hour at 18.5 km/h (11.5 mph)*
2.5 m (8 ft, 4 in.) | 4.7 ha (11.6 acres)
3.05 m (10 ft) | 5.6 ha (13.9 acres)
3.6 m (11 ft, 8 in.) | 6.6 ha (16.3 acres)

One-section drawn models — example productivity table
Working width | Productivity per hour at 18.5 km/h (11.5 mph)*
2.5 m (8 ft, 4 in.) | 4.7 ha (11.6 acres)
3.05 m (10 ft) | 5.6 ha (13.9 acres)
3.6 m (11 ft, 8 in.) | 6.6 ha (16.3 acres)

Individually mounted blades
The 2680H features individually mounted blades supported by rubber torsion elements. These blades can travel up to 22.9 cm (9 in.) while passing over an obstruction, allowing the rest of the tool to remain engaged and continue working for better ground contour. Individual blades are easy to replace without removing an entire gang.

Rear attachment options to match the operation
Producers can choose from three rear attachment options: cage roller, spring roller, and rubber roller. The cage roller is the most versatile and suited for fall tillage in a wide range of soils (diameter 64.8 cm / 25.5 in.). The spring roller is specialized for light/medium soils and provides additional firming with individually mounted tines to prevent plugging (diameter 62.2 cm / 24.5 in.) — avoid in rocky ground. The rubber roller is best for firming and preparing a seedbed in spring, works best in lighter drier soils, includes a hydraulically adjustable scraper, and has a diameter of 63.5 cm (25 in.).

Model year 2027 new tool offerings
Starting in model year 2027, two-section 2680H units will no longer be available to order; two-section 2680H’s will be replaced with the two-section HSD Series (widths from 15 to 25 ft). Integral three-point and drawn one-section 2680H models will still be available.

MY26 2680H widths (two-section) vs MY27 HSD Series widths (two-section)
MY26 2680H two-section examples: 15 ft, 11 in.; 17 ft, 7 in.; 20 ft, 11 in.; 24 ft, 4 in.
MY27 HSD Series two-section examples: 15 ft; 19 ft; 22 ft; 25 ft (two-section)

Specifications

• Working width: 3.56 m (11.67 ft)
• Transport width: 3.83 m (12.58 ft)
• Transport height: 3.07 m (10.08 ft)
• Working depth: 5.1 to 15.2 cm (2 to 6 in.)
• Blade spacing: 25.4 cm (10 in.)
• Blade size: 50.8 cm (20 in.)
• Weight per blade: 137 kg (302 lb)
• Number of front blades: 14
• Number of rear blades: 14
• Total number of blades: 28
• Horsepower per ft: 10.4 kW or more (14 hp or more)
• Operating speed: 16.1 to 22.5 km/h (10 to 14 mph)
• Purpose: Primary/Secondary tillage
