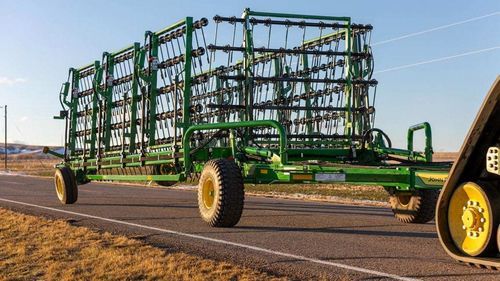

Tine harrow HH50

towed

Product overview

• Break up and evenly spread straw residue
• Operate at speeds up to 12 mph (19.3 km/h)
• Drop-out tine replacement for quick maintenance
• Flexible sections maintain consistent ground contact

Features — match acreage and power requirements
The HH50 Heavy Harrow is available in working widths from 15.2 m to 25 m (50 ft to 82 ft). Power requirements vary by configuration and field conditions, ranging approximately from 111.9 kW (150 hp) to 354.2 kW (475 hp).


Models and minimum engine power requirement

• 15.2 m (50 ft), five-row — Category 4 — Minimum engine: 111.9 kW (150 hp)
• 15.2 m (50 ft), seven-row — Category 4 — Minimum engine: 223.7 kW (300 hp)
• 21.3 m (70 ft), five-row — Category 4 — Minimum engine: 149.1 kW (200 hp)
• 21.3 m (70 ft), seven-row — Category 5 — Minimum engine: 298.3 kW (400 hp)
• 25 m (82 ft), five-row — Category 4 — Minimum engine: 223.7 kW (300 hp)
• 25 m (82 ft), seven-row — Category 5 — Minimum engine: 354.2 kW (475 hp)

Note: Power requirement depends on field conditions and tine angle.


Easy adjustment and maintenance with HH50 tine configurations
The HH50 is offered in a five-row configuration with 66 cm x 1.6 cm (26 in. x 5/8 in.) tines or a seven-row configuration with 66 cm x 1.3 cm (26 in. x 1/2 in.) tines. Both use tungsten carbide Endura-Tip tine tips.

• Quick drop-out tine replacement by removing a few bolts
• Tine angle and intensity adjustable via mechanical or hydraulic options
• Seven-row layout provides approximately 68% more ground coverage than the five-row layout

Technical specifications

• Model designation: HH50
• Working widths: 15.2 m to 25 m (50 ft to 82 ft)
• Available tine configurations: five-row (66 cm x 1.6 cm / 26 in. x 5/8 in.) and seven-row (66 cm x 1.3 cm / 26 in. x 1/2 in.)
• Tine tip: tungsten carbide Endura-Tip
• Maximum working speed: up to 12 mph (19.3 km/h)
• Drop-out tine replacement for easy maintenance
• Flexible sections for consistent ground contact
• Power requirement range (dependent on configuration and field conditions): 111.9 kW (150 hp) to 354.2 kW (475 hp)
• Minimum engine power per configuration: see models list above
