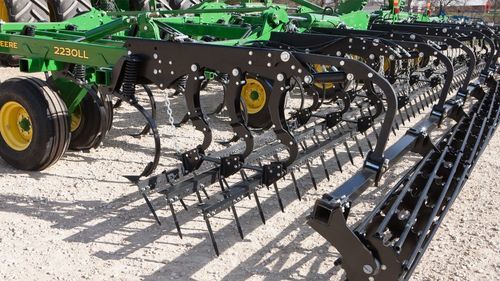

Towed field cultivator 2230LL

with hydraulic adjustmentwith harrowspring tine

Overview

• Working widths from 23 ft, 6 in. to 60 ft, 6 in. (7.2 to 18.4 m)
• Three- and five-section configurations
• Lattice-style frame design

Autonomy ready tillage
Technology and integrated components from factory to allow easier addition of fully autonomous tillage hardware. Components included from the factory:

• Implement lights
• Receiver mast
• Implement receiver harness

Autonomy ready availability (summary)
Model | Autonomy Ready Tillage (in-base) | Applicable Machine Widths
2430 | X | All widths, except 14 ft, 0 in. to 17 ft, 8 in. models
CC Series | X | All widths
HSD Series | X | All widths
2660VT | X | 25 ft, 5 in. to 49 ft, 6 in. models
2230 | X | All widths
2730 | X | All widths

Wide range of working widths to match acreage and horsepower requirements
At 16 km/h (10 mph) working speeds the 2230LL can cover up to 24.7 ha (61 acres) per hour. Available sizes range from 7.8 m to 18.4 m (25 ft, 6 in. to 60 ft, 6 in.). Horsepower requirements range from 19.6 to 29.4 kW/m (8 to 12 hp/ft), depending on soil, depth, and speed.

Three-section configurations (working widths & productivity)
Working widths | Centerframe size | Productivity per hour at 16 km/h (10 mph)
7.77 m (25 ft, 6 in.) | 2.74 m (9 ft) | 12.5 ha (31 acres)
9.60 m (31 ft, 6 in.) | 3.35 m (11 ft) | 15.4 ha (38 acres)
10.82 m (35 ft, 6 in.) | 3.35 m (11 ft) | 17.4 ha (43 acres)
13.25 m (43 ft, 6 in.) low transport | 3.35 m (11 ft) | 21.4 ha (53 acres)

Five-section configurations (working widths & productivity)
Working widths | Centerframe size | Productivity per hour at 16 km/h (10 mph)
14.17 m (46 ft, 6 in.) | 2.74 m (9 ft) | 22.7 ha (56 acres)
15.39 m (50 ft, 6 in.) | 2.74 m (9 ft) | 24.7 ha (61 acres)

Level-lift™ frame
The Level-lift hitch ensures level operation through all operating depths and provides consistent gang and sweep depth fore to aft for thorough seedbed preparation. Quick adjustment ensures a flat seedbed floor and level soil profile for planting. The T-hitch enables easy turnbuckle adjustment for fast tractor changeover and quick implement leveling fore to aft. Heavy-duty T-hitch allows tighter turning and houses hoses and wiring harness to protect them from crop and tire contact.

Shank spacing, seedbed preparation and weed management
True 152-mm (6-in.) split-the-middle shank spacing provides complete field coverage. TruPosition C-shanks with 91 kg (200 lb) of trip force minimize side-to-side movement and provide better control of the soil profile for improved leveling. Shanks provide a full tillage cut across the width of the implement to mix soil completely and reduce streaking, promoting flat seedbeds and consistent seed depth. Even 152-mm spacing minimizes potential strips of surviving weeds and assists pre-plant weed control which can reduce herbicide costs.

Spacing options
Standard: split-the-middle 152 mm (6 in.). Options include 229 mm (9 in.) split-the-middle and S-tine 114 mm (4.5 in.) depending on configuration and location.

ProFinish™ Leveling System (rear harrow options)
The ProFinish Leveling System offers six rear harrow options to meet agronomic needs. Capabilities mapping (harrow type → capabilities):
Capabilities | Five-bar coil-tine harrow | Six-bar spike-tooth harrow | Three-bar coil-tine with round-bar basket | Three-bar coil-tine with flat-bar basket | Three-bar spike-tooth with round-bar basket | Three-bar spike-tooth with flat-bar basket
Level seedbed | Better | Better | Best | Best | Best | Best
Firm seedbed | Fair | Good | Best | Better | Best | Better
Handle residue | Best | Better | Best | Best | Better | Better
Break up clods | Good | Better | Better | Best | Better | Best
Handle moisture/wet soil | Best | Better | Good | Good | Good | Good
Handle rocks | Best | Good | Better | Good | Better | Good

Wing stabilizer wheels
Recommended for rolling ground, terraces or operation above 11 km/h (7 mph). On 2230LL: two mechanical wing stabilizer wheels are included on the outer wings for all five-section configurations; three-section and five-section configurations can optionally add stabilizer wheels to inner wings. On 2230FH: options and base quantities vary and active-hydraulic castering wheels are included in base equipment for inner and outer wings on 2230FH.

Tire sizes (summary)
Radial and bias-ply tire options available. Examples (depending on configuration):
Main frame / Wing frame radial examples: IF280/80 R15 (six bolt), IF280/70 R15 (six bolt), IF320/70 R15 (six or eight bolt depending on config).
Bias examples: 9.5L-15 LD D, 11L-15 FI LR D, 12.5L-15 FI LR variants (bolt count varies by config).

Rear hitch and rear attachments
A substantial rear hitch is available to provide versatility for pulling rear attachments. Rear hitch features:

• Rectangular tube construction
• Telescoping hitch
• Serviceable drawbar
• 453-kg (1000-lb) tongue weight rating (standard example)
• 13,000 lb GVW rating for five-section machines; 10,000 lb GVW rating for three-section machines (example ratings)
• Wiring harness for transport lights
• Hydraulic hoses and couplers (two circuits provided)
• Higher load safety chain between tractor and implement

Heavy-duty rear hitch support is available (recommended when rear attachment exceeds standard hitch ratings); compatible with five-section 2230FH and 2230LL.

Low-transport configurations
Low-transport configurations fold like a five-section implement but operate like a three-section implement to improve transportability and operation over uneven terrain. Example low-transport specification: Working width 13.3 m (43 ft, 6 in.) → Transport height 4.4 m (14 ft, 4 in.) → Transport width 5.5 m (18 ft).

Other features
- ProFinish Leveling System offers wide range of rear harrows and tool-free adjustments on many harrow types.
- Center frame depth control tires on walk-over tandem wheels (bias-ply option available).
- Mechanical stabilizer wheels and active-hydraulic castering wheels options available depending on model and configuration.

Caractéristiques / Spécifications techniques

• Model (commercial denomination): 2230LL
• Working widths (3-section options): 7.16 m (23.5 ft); 7.77 m (25.5 ft); 8.38 m (27.5 ft); 8.99 m (29.5 ft); 9.6 m (31.5 ft); 10.2 m (33.5 ft); 10.85 m (35.5 ft); Low Transport 11.73 m (38.5 ft); Low Transport 13.25 m (43.5 ft)
• Working widths (5-section options): 12.95 m (42.5 ft); 14.17 m (46.5 ft); 15.4 m (50.5 ft); 16.0 m (52.5 ft); 17.22 m (56.5 ft); 18.44 m (60.5 ft)
• Operating depth: up to 12.7 cm (5 in.)
• Operating speed: 10 to 16 km/h (6 to 10 mph)
• Horsepower required: 19.6 to 29.4 kW/m (8 to 12 hp/ft)
• Standard spacing: Split-the-middle 152 mm (6 in.) (options 229 mm / 9 in. and S-tine 114 mm / 4.5 in. may be available)
• Standard fold type: Over-center fold
• Depth control: Single-point depth control in base; option to add TruSet™ in-cab depth/pressure control
• Hydraulic requirements (standard): 2 SCVs (lift and fold) at 17,237 kPa (2,500 psi); additional SCV recommended for optional rolling basket down pressure
• Electrical requirements (standard): 9-pin connector for warning lights; if adding TruSet, tractor must be GreenStar™ system-ready
• Hitch type: Level-lift: 15.2x25.4 cm (6x10 in.) T-hitch, cast-steel hitch link, optional rear hitch
• Frame tubing: Rank tubes 10.2x10.2 cm (4x4 in.); center frame fore-aft tubes for 5-rank: 5.1x15.2 cm (2x6 in.), for 6-rank: 5.1x20.3 cm (2x8 in.); wing fore-aft tubes 5.1x15.2 cm
• Underframe clearance: 61 cm (24 in.)
• Number of ranks: configurations with 5-rank or 6-rank tube frames depending on option and centerframe size
• Standard ground-engaging components: wide variety of sweeps, shovels, and points
• Centerframe depth control wheels & tires: Walk-Over tandem wheels with center frame tires; examples of centerframe tire options: IF280/70 R15 or IF320/70 R15 depending on configuration
• Wing frame wheels & tires: Walk-Over tandem wheels; examples include 11L-15 or 12.5L-15 options depending on configuration
• Stabilizer wheels: Mechanical stabilizer wheels standard or optional depending on configuration; active-hydraulic castering wheels available on some models
