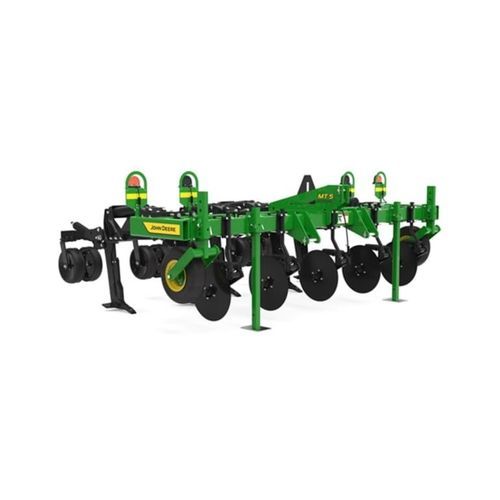

5-shank ripper MT5

Overview
MT5 Minimum-Till Ripper from John Deere. MT Series minimum-till rippers are designed to operate at 4–7 mph (6.4–11.2 km/h) behind high-horsepower tractors. They fracture deep compaction to depths up to 16 in (40.6 cm) while minimizing topsoil disturbance. Extended-wear standards provide up to twice the life expectancy compared with previous 2100 ripper models, increasing daily productivity.

Key features

• 5 standards
• Two stabilizer wheels
• Integral hitch option (three-point hitch compatible)
• Extended-wear standards for longer component life
• In-line ripper configuration

Product details
MT5 is engineered to minimize topsoil disturbance while breaking deep compaction to improve field productivity. Multiple ground-engaging component choices and replaceable wear parts reduce maintenance downtime and extend service intervals. The machine supports different tool configurations (shear-bolt trip, cushion trip) and a range of point types including LaserRip options.

Technical specifications

• Working width — 3.8 m / 12.5 ft
• Transport width — 4.1 m / 13.4 ft
• Maximum operating depth — 40.6 cm / 16 in
• Operating speed — 6.4–11.2 km/h (4–7 mph)
• Horsepower per standard — 29.8–44.7 kW (40–60 hp)
• Spacing between standards — 76.2 cm / 30 in
• Tool configuration — In-line ripper
• Frame size — 102 x 152 x 9.5 mm (4 x 6 x 0.375 in)
• Maximum underframe clearance — 89 cm / 35 in
• Depth control — three-point hitch for integral model
• Hitch options — Integral; three-point hitch requirements: Category 3/4N (with Quik-Coupler)
• Standard options (examples):
  • Spacing between standards — 76.2 cm / 30 in
  • Option 1: Trip force (shear-bolt): 3,265 kg / 7,200 lb; standard type: straight with wear shin 19 or 31.75 mm (0.75 or 1.25 in); shear-bolt
  • Option 2: Trip force: 1,451.5 kg / 3,200 lb; trip height: 30.5 cm / 12 in; standard type: 19 mm / 0.75 in; cushion trip
• Ground-engaging components (options): standard 19 mm (0.75 in); min-till point 178 mm (7 in); low-disturbance 254 mm (10 in); ultra-low-disturbance 63 mm (2.5 in); standard 31.75 mm (1.25 in); regular 57 mm (2.25 in); capped 57 mm (2.25 in); double-capped 57 mm (2.25 in); LaserRip points: 70 mm (2.75 in), 127 mm (5 in), 178 mm (7 in)
• Coulters — Type: spring cushion; Blades: straight or rippled 559 x 4.5 mm (22 x 0.1777 in); Normal working load: 272.2 kg / 600 lb with deflection 10.2 cm / 4 in; Maximum trip load: 362.9 kg / 800 lb with deflection 20.3 cm / 8 in
• Closing wheel attachment — Down force: 113.4 kg / 250 lb; Size: 10.2 x 40.6 cm / 4 x 16 in; Spacing: 19.05 to 35.6 cm / 7.5 to 14 in; Angle adjustment: 1 to 15°
• Stabilizer/gauge wheels — Two stabilizer wheels; Wheel size: 52.1 x 20.3 cm / 20.5 x 8 in; Tires: 10 PR
• Frame and durability — Extended-wear standards and replaceable ground-engaging components designed to increase uptime and reduce maintenance
