Grain conveyor 161237

fertilizerbeltmobile

Overview
A versatile and efficient solution for transferring grain, designed for mobility and reliable operation. Ideal for rapid unloading from grain bins into semi-trailers or for intra-farm transfer of bulk commodities, combining high capacity with compact portability.

Key Capabilities

• High throughput: 4,500 to 6,000 bushels per hour; capable of filling a semi-trailer in approximately 10 minutes.
• Versatile mobility: low-profile, collapsible design with optional hydraulic mover package for bin-to-bin movement and transport.
• Flexible power: available with electric motor, hydraulic drive, or PTO drive to match site power and equipment.
• Adaptable handling: 16-inch wide continuous crescent belt; optional stainless steel construction for specialty materials.
• Clean operation: enclosed belt return and durable components for reduced spillage and long service life.

Setup & Operation

• Quick deployment: collapsible canvas hopper enables fast setup and access under bin discharges or semi hopper bottoms.
• Simple controls: steering, height adjustment and belt drive are straightforward for efficient material handling.
• Precise positioning: hydraulic mover option facilitates accurate placement and easy relocation between sites.
• Maintenance-friendly: accessible components and straightforward maintenance ensure dependable operation.

Applications

• Designed for seed, grain, fertilizer and other bulk agricultural commodities.
• Optional stainless steel construction for corrosive or specialty product handling.

Technical specifications

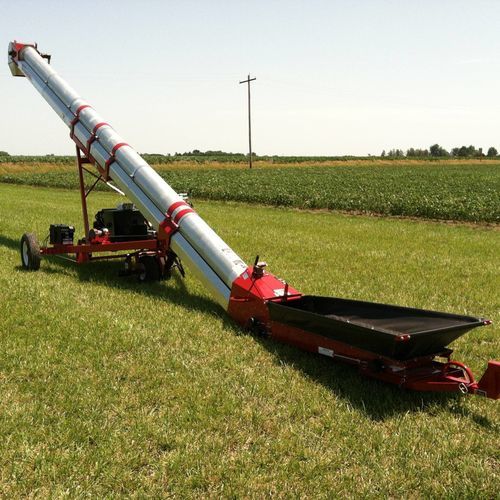

• Model: KSi 161237 Low Profile Conveyor
• Belt width: 16 inches
• Length: 37 feet (roller axis to roller axis)
• Capacity: 4,500 to 6,000 bushels per hour
• Belt speed: 611 feet per minute (FPM)
• Discharge height: up to 15 feet (at 28°)
• Drive options: Electric — 10 HP, 1750 RPM motor; Hydraulic — 6.2 cu. in., 2200 PSI, 15 GPM; PTO — compatible with standard tractors
• Optional features: hydraulic-powered mover package; 20 HP / 8 HP Honda motor option; stainless steel construction available
