Grain conveyor 12UB Underbin

beltcurvedelectric

Product Overview
High-performance underbin conveyors specifically engineered for gentle, low-contamination transfer of seeds and grains in agricultural facilities. The crescent belt running in a curvilinear pan centers material flow to reduce spillage and seed damage, while modular construction enables long runs and flexible integration into storage and handling systems.

Key Benefits & Features

• Galvanized steel construction with beveled tops for corrosion and weather resistance.
• Crescent belt operates in a curvilinear pan to maintain centered, gentle material handling and minimize cross-contamination.
• Multiple drive configurations including standard and dual-drive (head and tail) for long conveying runs.
• Modular sections support conveyor lengths over 200 ft with engineered take-up sections for consistent belt tension.
• Accessible pans and doors for fast inspection and cleaning; enclosed belt return protects components from dust and weather.
• Optional reversing discharge with enclosed cover and deflector panel for flexible material routing.

Product Gallery Notes

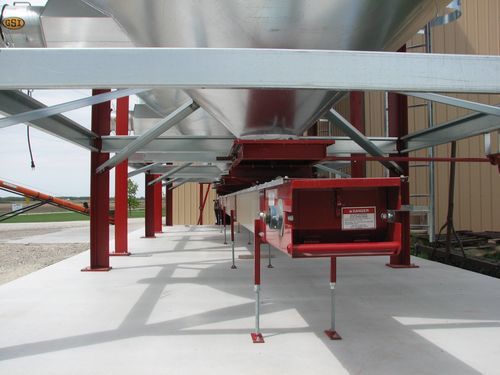

Images available showing system layout, belt profile, dual-drive installations and hard transitions between bins to illustrate integration and service access.

Technical Information

• Models: KSi 12UB and KSi 16UB underbin conveyors
• Belt widths: 12 in (12UB) and 16 in (16UB)
• Belt speed: 432 ft/min
• Drive options: 5 HP to 15 HP electric motors
• Length: Modular design supporting runs over 200 ft
• Reversing: Optional reversing discharge end

Features (detailed)

• Crescent belt geometry for centered material flow and gentle seed/grain handling.
• Galvanized construction with beveled tops to shed debris and moisture.
• Standard hanging brackets for installation flexibility.
• Optional seed box hopper inlet for controlled feeding.

Maintenance

• Removable inspection and clean-out pans for quick access.
• Enclosed belt return system to reduce weather-related wear.
• Accessible maintenance points and engineered take-up sections.
• Customizable bin transitions and S-Drive take-up for easy cleaning and reduced hang-ups.

Technical specifications

• Product family: KSi Underbin Conveyors (12UB and 16UB)
• Belt widths: 12 in (305 mm) and 16 in (406 mm)
• Belt speed: 432 ft/min (approx. 131.7 m/min)
• Drive motors: 5 HP–15 HP electric options
• Design: Crescent belt in curvilinear pan for centered, gentle seed/grain transport
• Construction: Galvanized with beveled tops for durability and weather resistance
• Configurations: Standard drive, dual-drive for long conveyors, optional reversing discharge
• Modularity: Supports lengths over 200 ft with engineered take-up sections
• Options: Seed box hopper inlet, hanging brackets, S-Drive take-up section, bin transitions with air-actuated or electric gate options
• Maintenance: Removable inspection/clean-out pans, enclosed belt return, accessible maintenance points
