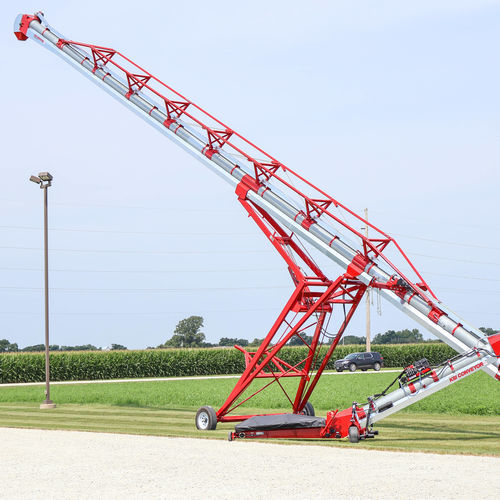

Swing-away conveyor

for grainbeltmobile

Overview
The KSi Swing Away Bin Fill Conveyor is a self-driven, high-capacity conveyor engineered for flexible transfer of grains and seeds between bins, trailers and storage. Designed for agricultural operations, it offers remote-controlled swing-away drive wheels, a reduced transition profile for dual-side use, and wireless remote operation to simplify positioning and protect product integrity during transfer.

Key Features

• Wireless Remote Controls — latest wireless hydraulic remote for swing-away drive and positioning to improve safety and convenience from a distance.
• Smaller Transition Design — reduced transition profile allows full swing to either side of the tractor while storing on the built side for compact transport.
• Fully Self-Driven with Remote Swing Away Drive Wheels — self-contained propulsion with remote-controlled drive wheels for precise placement and independent operation.
• High Capacity Performance — engineered for high-throughput handling up to 4,500–6,000 bushels/hour depending on configuration.

Operation Process

• Setup & Positioning: Rapid positioning using hydraulics with 360° rotation capability and remote control for accurate alignment to bins or trailers.
• Operation: Multiple drive options (PTO, electric motor, hydraulic) and remote control enable continuous, monitored material transfer with adjustable incline.
• Maintenance: Accessible clean-out doors and straightforward service points for fast residual removal and routine maintenance.

Benefits

• Flexible Operation — choice of hydraulic or electric drives, adjustable incline and full 360° positioning for varied field and yard workflows.
• Minimal Downtime — easy access for clean-out and maintenance reduces stoppages during peak harvest operations.
• High Throughput — belt speeds up to 600 FPM (~3.05 m/s) and wide belt enable efficient transfer rates.
• Transportable Design — compact towing dimensions when stowed for easier relocation between sites.

Technical Specifications

• Performance: Capacity: 4,500–6,000 bu/h; Belt Width: 16 in (406 mm); Belt Speed: up to 600 FPM (~3.05 m/s); Cleat Height: 2 in (51 mm); Rotation: full 360° positioning.
• Drive Options: Standard PTO: 540 rpm; Optional PTO: 1000 rpm; Electric Motor: 20 hp (~15 kW); Remote-controlled hydraulic drive available.
• Transport Dimensions: Towing Width: 11' 2" (~3.40 m); Extended Wheel Width: 14' 2" (~4.32 m); Transport Height: 13' 6" (~4.12 m); Maximum Road Speed: 25 mph (~40 km/h).
• Hydraulic Requirements: Swingaway Flow: 16 GPM (~60.6 L/min); Scissors Lift Flow: 5 GPM (~18.9 L/min); Total Minimum Flow: 21 GPM (~79.5 L/min); Operating Pressure: 2,150–2,500 psi (~148–172 bar); Controls: wireless hydraulic remote system.
