Grain conveyor 18BDX Overbin

beltflexible

Product overview

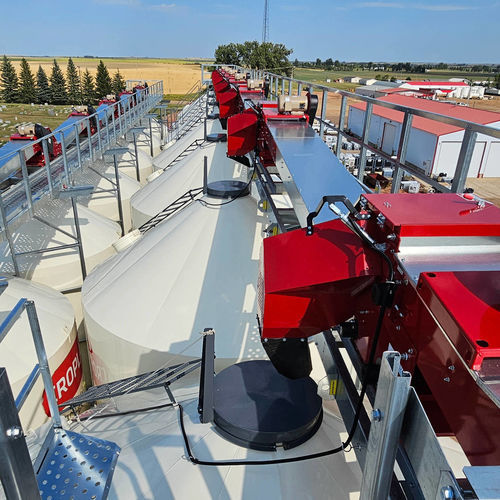

The KSi 18BDX Overbin Conveyor provides an efficient solution for filling multiple bins from a single inlet where conventional bin fill conveyors cannot be used. Engineered for gentle transport of seed and grain to preserve product integrity and prevent cross-contamination.

Key features

• Optimal design for bin layouts that cannot accommodate traditional bin fill conveyors.
• Gentle handling for seed and grain to maintain quality and avoid cross-contamination.
• High capacity: up to 4,000 bushels per hour regardless of length or configuration.
• Modular sections that can be stacked to reach required length with flexible configuration options.

Benefits

• Easy maintenance with catwalks for safe inspection and service access.
• Weather protection provided by a fully enclosed conveyor to shield product from elements, wind and pests.
• Reliable performance engineered for continuous operation with minimal downtime.
• Quick installation designed to reduce operational disruption during implementation.

Automation & integration
The system integrates with KSi's automation ecosystem, including AutoTreat™ and AutoBatch™. Features include PLC integration with industrial touchscreen interfaces, programmable bin fill sequences and recipe management, remote monitoring and data logging for performance analysis.

Technical details

• Capacity: up to 4,000 bushels per hour.
• Belt speed: 540 feet per minute (FPM).
• Components: Head End Divert Section; Jump Conveyors (14.5' or 17' spacing); Tail Inlet Conveyor; integrated automation controls.
• Maintenance: regular belt cleaning and tension adjustments; bearing lubrication every 50 hours; annual motor bearing maintenance.

Product gallery
Renderings and section views detail the complete 18BDX Overbin Conveyor system, head section and jump conveyor configurations.

Technical specifications

• Model: KSi 18BDX Overbin Conveyor
• Manufacturer: KSi
• Warranty: 2 year limited warranty
• Capacity: up to 4,000 bushels per hour
• Belt speed: 540 feet per minute (FPM)
• Key components: Head End Divert Section; Jump Conveyors (14.5' or 17' spacing); Tail Inlet Conveyor; integrated automation controls
• Maintenance requirements: regular belt cleaning and tension adjustments; bearing lubrication every 50 hours; annual motor bearing maintenance
• Automation & integration: centralized control via AutoTreat™/AutoBatch™; PLC integration; workflow automation; remote monitoring and data logging
